Hubbell DRUBTVSS15 15 Amp 125 Volt NEMA 5-15R Gray Din Rail Utility Box Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DRUBTVSS15 | Codale Part # 493944
$284.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
DIN Rail Utility Box, Complete Unit- TVSS, DIN Rail Box, 15A TVSS, Gray.

Technical Information

Amperage
15 Amp
Applications
Unit Pre-Wired with Surge Protection Receptacle
Cable Entry
Terminals
Conductor Size
14-12 AWG
Current
15 Amp
Horsepower
0.5 hp
Material
Composite
Mounting Type
Vertical, DIN Rail
NEMA
5-15R
Number of Poles
2-2 Pole
Number of Wires
3,3
Size
Standard Sized Product
Standard
UL
Type
Complete Unit, TVSS, Utility Box
Voltage
125 Volt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
DIN Rail Utility Box

General Product Info

12-Digit UPC
783585108117
Color
Gray
Construction
Molded And Fabricated
Product UPC
78358510811
Weight
1.1 lb

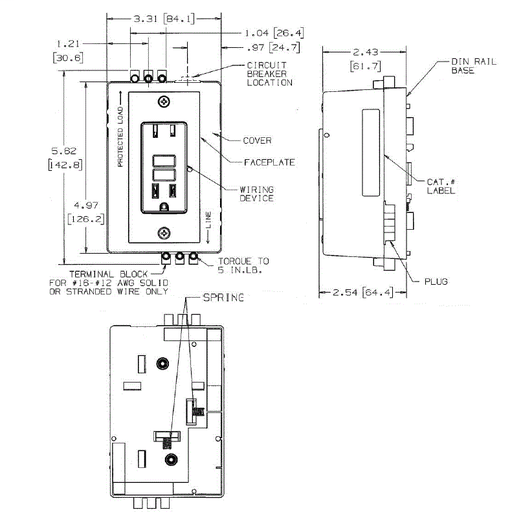

Dimensions

Height
2.54 Inch
Length
5.62 Inch
Width
3.31 in

Certifications and Compliance

Country of Origin
China
Features
  • It provides utility power to any control cabinet
  • Optional auxiliary contacts for feed through capability
  • Pre-wired \"kits\" are available for end-user customization
  • 15A 125V, 2-Pole 3-Wire Grounding
