Panduit TM3S25-C .62 Inch 15.8 mm 1/4 Screw Cable Tie Mount

Manufacturer: PANDUIT | Catalog # TM3S25-C | Codale Part # 49422
$138.61/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

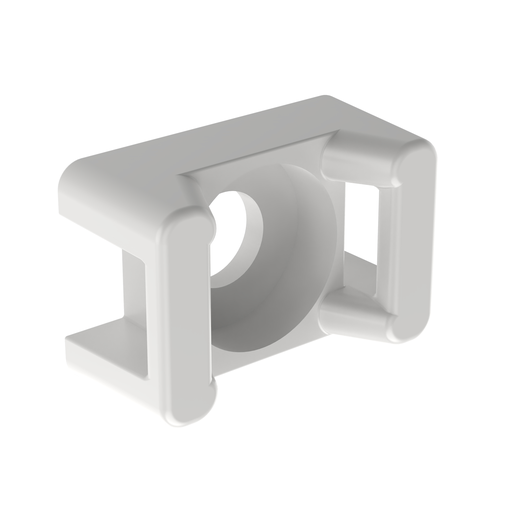

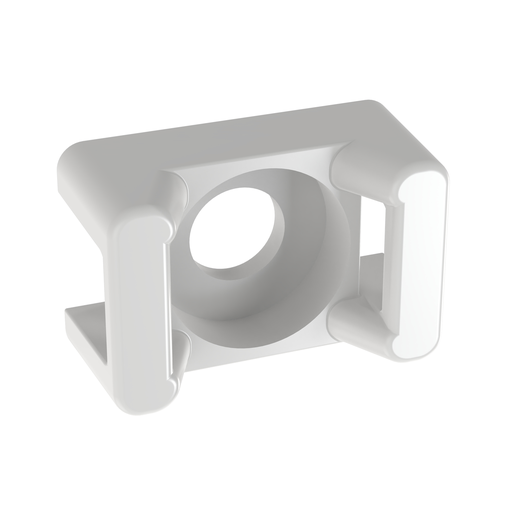

Panduit TM3S25-C Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #1/4 (M6) screw. For indoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Nylon 6.6. They are 0.63" (16 mm) wide, are natural in color and come in packages of 100.

Technical Information

Material
Nylon
Max Operating Temperature
185 degrees F
Min Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Screw Size
1/4 (M6)
Type
Cable Tie Mount

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983583003
Color
Natural
Environment
Indoor
Product UPC
07498358300
Weight
0.4200 lb

Dimensions

Height
0.37 Inch
Hole Diameter
.26 in
Length
.88 in
Overall Length
22.3 mm
Width
16 mm

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
Yes
Country of Origin
USA
Hazmat Flag
No
Standards and Certifications
  • Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant
