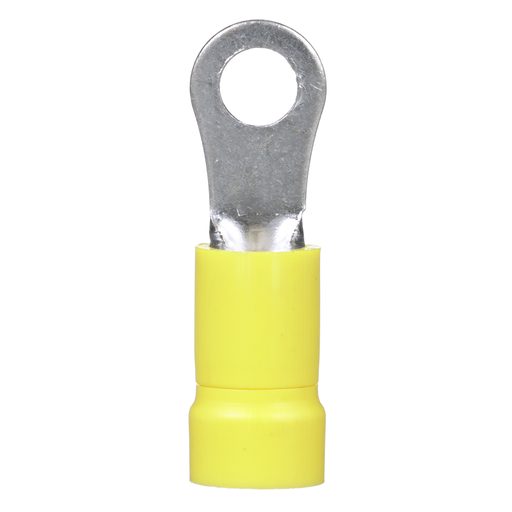

Product image for Panduit PV10-8R-L Vinyl Insulated Ring Terminal - #12-10, #8bolt
Image thumbnail 0
Image thumbnail 1
Email

Panduit PV10-8R-L Vinyl Insulated Ring Terminal - #12-10, #8bolt

Manufacturer: PANDUIT | Catalog # PV10-8R-L | Codale Part # 49545
$190.02/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
650 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The PV10-8R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.52 in
Barrel Type
Grip Sleeve
Color Coding
Yellow
Conductor Size
12-10 AWG
Enclosure
Ring shape
Insulation Material
PVC
Material
Copper
Max Operating Temperature
105 degrees C
Size
#8
Stud Size
#8
Tc Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.31 in
Type
Loose Piece
Voltage
600 Volt
Wire Size
10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983801305
Color
Yellow
Finish
Tin Plated
Product UPC
07498380130
Weight
0.2500 lb

Dimensions

Overall Length
1.05 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Prop 65
  • No
