Red Dot DIH3-1-LM-WH 1-Gang Weatherproof Metallic Device Box, (3) 1/2" Hubs, 2" Deep - White

Manufacturer: ABB Thomas & Betts | Catalog # DIH3-1-LM-WH | Codale Part # 4958
$1,730.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Single Gang Universal Weatherproof Box, 19.0 Cubic Inches, Hub Size 1/2 Inch, White, Aluminum, 3 Outlets, One on Top, Bottom, and Back, with Mounting Lugs

Technical Information

Applications
Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations
Cable Entry
1/2 in Hub
Material
Aluminum
Mounting Type
Wall/Ceiling/Screw
Number of Gangs
1 Gang
Type
Universal, Rectangular, 3-Outlet

Manufacturer Information

Brand
ABB
Sub Brand
Red Dot®

General Product Info

12-Digit UPC
042269810228
Color
White
Finish
Powder Coated
Product UPC
04226981022
Weight
0.5400 lb

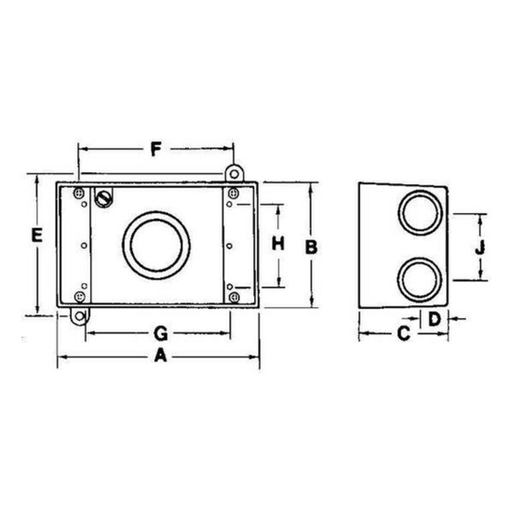

Dimensions

Depth
2 Inch
Height
7 Inch
Length
4-9/16 Inch
Width
2-13/16 in
Features
  • Precision cast and machined surfaces permit safer wire pulling.
  • Clean cover edges provide good gasket sealing.
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Convenient mounting lugs for a variety of mounting methods
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Clear UL and cubic content markings speed approval by inspectors
  • Securely fastened mounting plates reduce costly call backs
Certifications
  • UL
Application
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Junction box for branch conduits
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Notes
  • Rain tight when used with appropriate Red Dot covers.
