Red Dot DIH3-2-LM Silver Die-Cast Aluminum 3-Hole 1-Gang 3/4 Inch Weatherproof Box

Manufacturer: ABB Thomas & Betts | Catalog # DIH3-2-LM | Codale Part # 4959
$1,260.21/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page

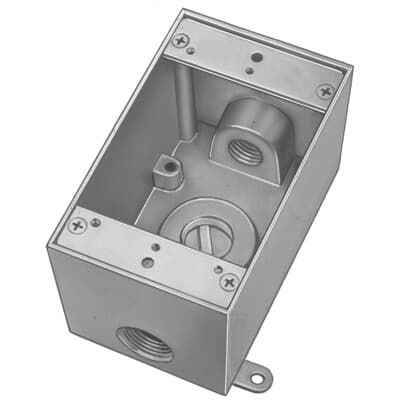

Single Gang Universal Weatherproof Box, 18.3 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back, with Mounting Lugs, Pack of 10

Technical Information

Applications
Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations
Cable Entry
3/4 in Hub
Material
Aluminum
Number of Gangs
1 Gang
Standard
UL E28688
Type
3-Outlet, Rectangular, Universal

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Red Dot®, Shrnk-Wrp

General Product Info

12-Digit UPC
042269810235
Color
Silver
Finish
Powder Coated
Product UPC
04226981023
Weight
0.5800 lb

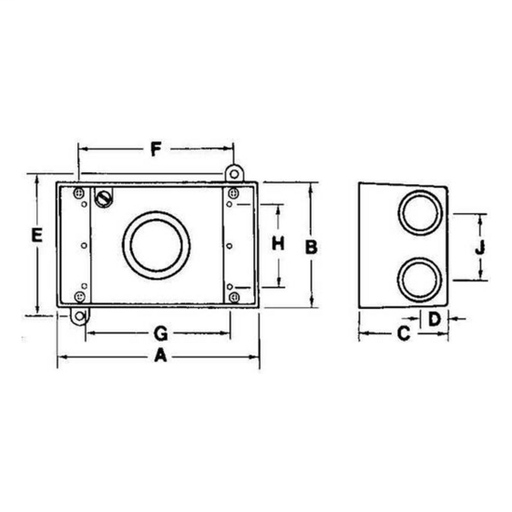

Dimensions

Height
6-1/2 Inch
Width
6 in
Features
  • Precision cast and machined surfaces permit safer wire pulling.
  • Securely fastened mounting plates reduce costly call backs
  • Convenient mounting lugs for a variety of mounting methods
  • Clear UL and cubic content markings speed approval by inspectors
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Clean cover edges provide good gasket sealing.
Application
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
  • Junction box for branch conduits
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
Certifications
  • UL
Notes
  • Rain tight when used with appropriate Red Dot covers.
