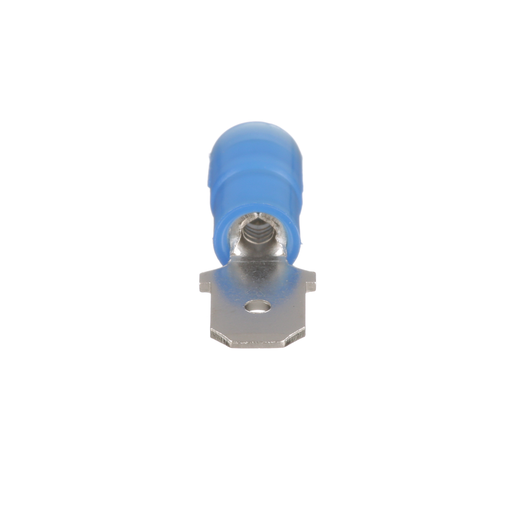

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit DNF14-250M-C Nylon Barrel Insulated Male Disconnect

Manufacturer: Panduit | Catalog # DNF14-250M-C | Codale Part # 49637
$246.21/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.90" (22.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Blue
Conductor Size
16-14 AWG
Insulation Material
Nylon
Material
Copper
Max Operating Temperature
105 degrees C
Tab Size
6.3 x 0.8 mm
Tc Connection
Standard
Temperature Rating
221 degrees F
Type
Loose Piece, Standard, Flat
Voltage
600 Volt
Wire Size
14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827183
Color
Blue
Finish
Nickel
Product UPC
07498382718
UNSPSC
39121409
Weight
0.0030 lb

Dimensions

Height
0.03 Inch
Overall Length
0.9 in
Width
0.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
