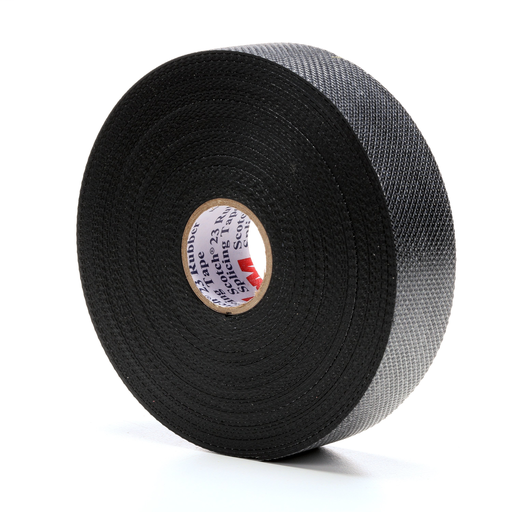

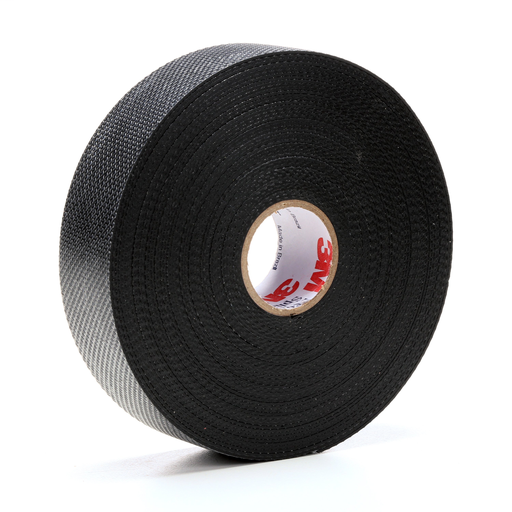

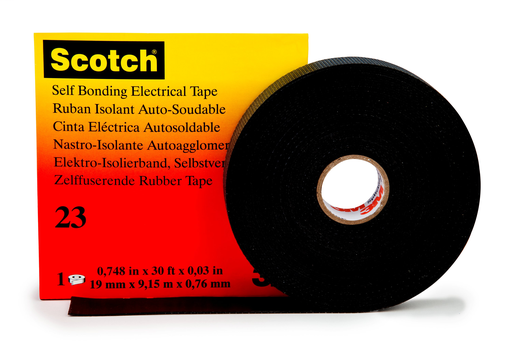

3M 23-1X30FT-K 23 ELECTRICAL RUBBER

Manufacturer: 3M | Catalog # 7000034850 | Codale Part # 50120
$89.14/ea
ea
Order in multiples of 32 (pack qty)
Log in or register to view your price, purchase history, and more!
7 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Scotch® Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 .F (90 .C).

Technical Information

Adhesive Type
Rubber
Applications
Electrical Maintenance,Insulation
Backing Material
Polyester lining
Insulated?
Yes
Material
EPR With Liner
Max Operating Temperature
194 degrees F
Operating Temperature
194 degrees F
Size
1 in x 30 ft
Temperature Rating
0 - 194 degrees F
Tensile Strength
8 Pound-Force Per Square Inch
Type
Insulating and Splicing
Voltage
69 kV

Manufacturer Information

Brand
3M
Sub Brand
Scotch

General Product Info

12-Digit UPC
054007000594
Color
Black
Product UPC
05400700059
Tape Color
Black

Dimensions

Length
30 Foot
Overall Length
30 ft
Thickness
30 Milli-inch (mil)
Width
1 in

Certifications and Compliance

ARRA Compliant
C
Features
  • Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
  • Temperature rated for continuous adhesion to 194°F (90°C)
  • Special polyester liner keeps tape protected and clean during application
  • ASTM Approved & RoHS 2002/65/EC Compliant
