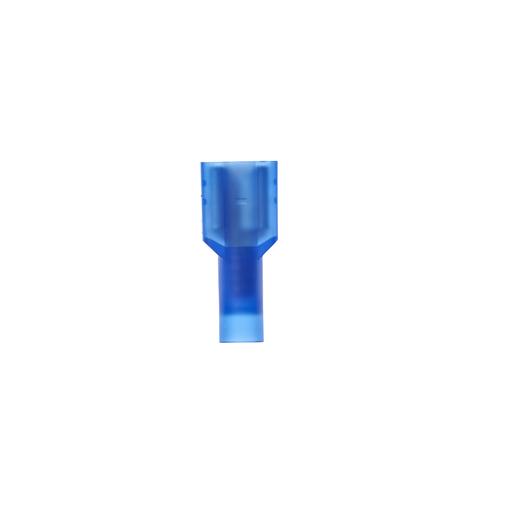

3M MNU14-250DFIX Nylon Insulated Female Disconnect (100/Bottle)

Manufacturer: 3M | Catalog # 7000133350 | Codale Part # 50275
$1.95/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
800 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
14 AWG
Connection Type
Wire
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Terminal Size
16 - 14 AWG
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Type
E1 Plus Solid State Relay

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128587775
Color
Blue
Product UPC
05112858777
Weight
0.3250 lb

Dimensions

Diameter
0.23 Inch
Length
0.87 Inch
Overall Length
0.87 in
Thickness
0.032 in
Width
0.37 in

Certifications and Compliance

Country of Origin
USA
Features

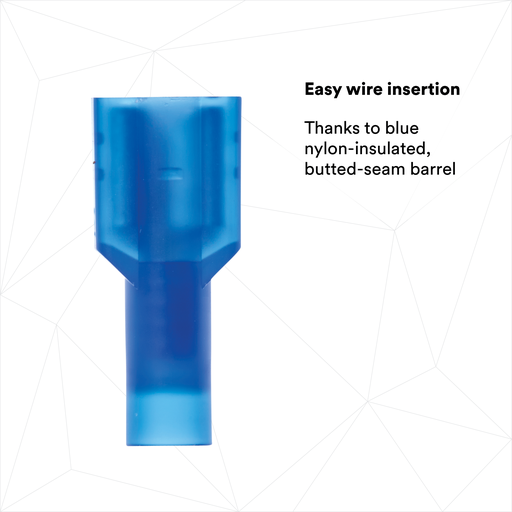

  • EASY WIRE INSERTION: Thanks to blue nylon-insulated, butted-seam barrel
  • DURABLE BRASS: For good conductivity
  • RESISTS CORROSION: Thanks to tin plating

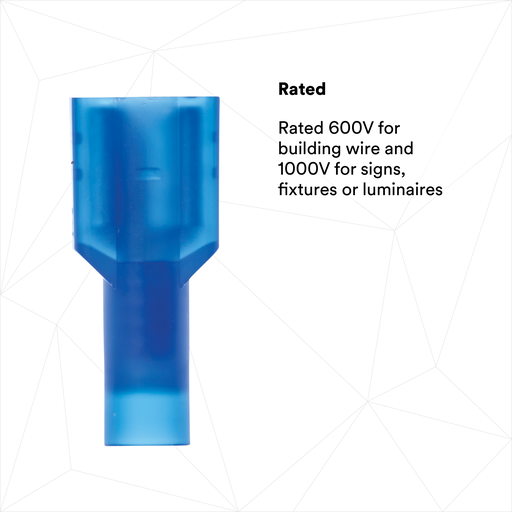

  • RATED: Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • OPERATING TEMPERATURE: Ranging from -40°F to 221 °F (-40 to 105 °C)
  • ACCOMMODATES WIRE SIZES: 16 to 14 AWG (sized to grip male tabs 0.250? x 0.032? per ANSI/NEMA CD-2)
