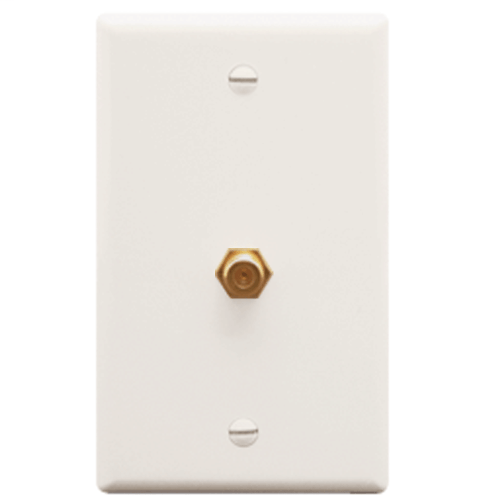

ICC IC630EG0WH FLUSH MOUNT WALL PLATE W/CATV CONNECTOR GOLD (WHITE)

Manufacturer: ICC Premise Wiring Products | Catalog # IC630EG0WH | Codale Part # 503607
$5.71/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ICC.s Integrated Faceplates are equipped to support work area outlets. Our faceplates are fitted to install video connectivity. Ideal for installations such as conference rooms, computer labs, classrooms, and office cubicles. Designed with installation versatility these faceplates provide a professional appearance. This particular wall plate design is for an F-Type application.

Technical Information

Connection Type
F-Type
Material
ABS, UL 94V-0,Bronze With 3-micron gold Plating
Number of Gangs
1 Gang
Number of Ports
1
Performance Level
Video
Style
Classic

Manufacturer Information

Brand
ICC Compliance Center, Inc.

General Product Info

12-Digit UPC
633758010108
Color
Ivory,White,White
Product Type
Faceplates
Product UPC
63375801010

Certifications and Compliance

Country of Origin
China
Features
  • Configured to fit standard single gang outlet box.
  • One piece design that requires no assembly.
  • Rugged and durable construction.
  • Gold plated F-Type connector for improved performance with superior quality.
  • Designed to use with both RG6 and RG59 coaxial.
  • Rear threaded F-Type connector for secure in-wall connections.
  • ANSI/TIA-568-C and UL 1863 compliant.
  • Return loss of -20 dB
  • Frequency Range DC -1.5 GHz
