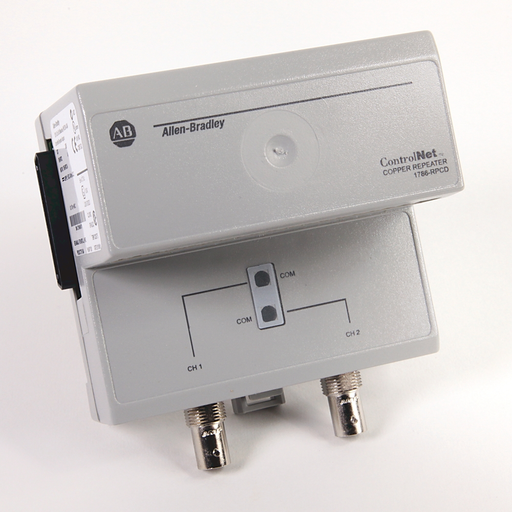

Allen-Bradley 1786-RPCD Controlnet Coaxial Hub Repeater

Manufacturer: Allen Bradley / Rockwell | Catalog # 1786-RPCD | Codale Part # 504653
$1,656.10/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ControlNet Coaxial Hub Repeater

Technical Information

Applications
ControlNet
Mounting Type
DIN-Rail
Number of Ports
2
Power Supply
24 V DC Power Supply
Standard
CE,CSA,GOST,KC,MARINE,RCM,UL
Type
Coax Repeater Adaptor Module

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlNet

General Product Info

12-Digit UPC
612598206810
Product UPC
61259820681
Weight
0.6200 lb
Features
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Displays useful field bus diagnostic information via status LEDs
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Supports multiple levels of device and media redundancy
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Links an EtherNet/IP™ network to a single H1 segment
  • Supports as many as 24 PA field devices
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Self-contained, panel, or DIN-rail mountable device
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Supports Master Device redundancy
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Use with the 1786-RPFS repeater
  • Supports ControlNet Media redundancy
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Includes 200 micron cable
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
  • Provides all basic diagnostic information in the input assembly
  • Links a ControlNet™ network to a single H1 segment
  • Supports EtherNet/IP Media redundancy
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
