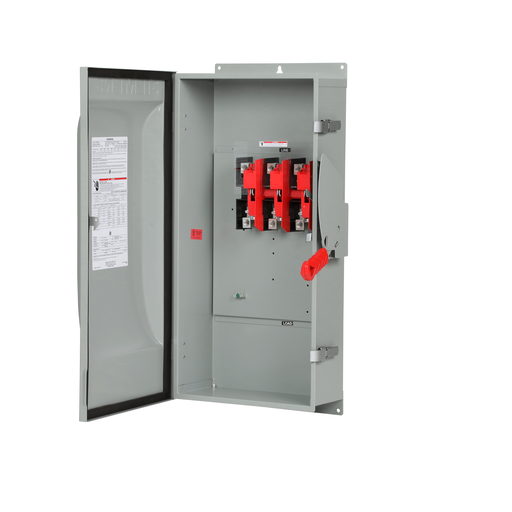

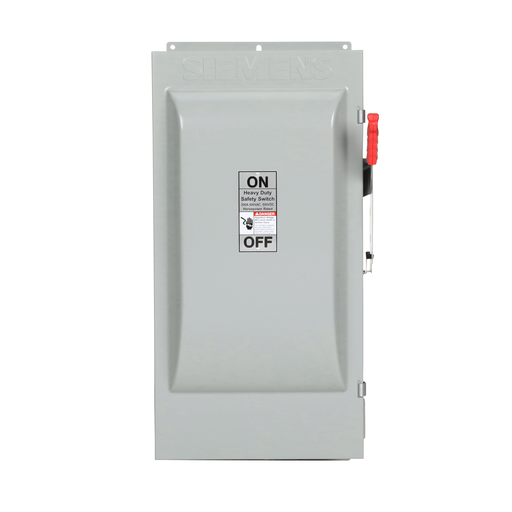

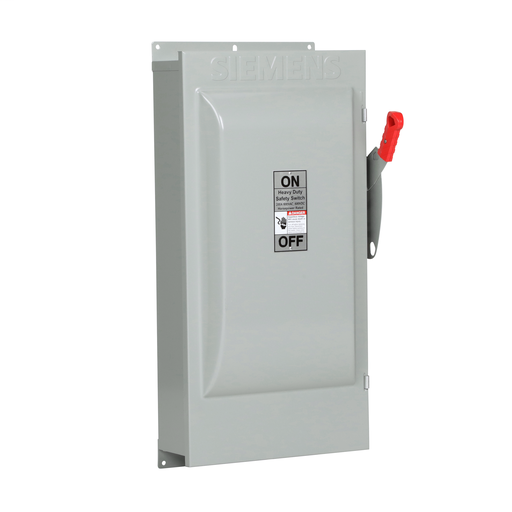

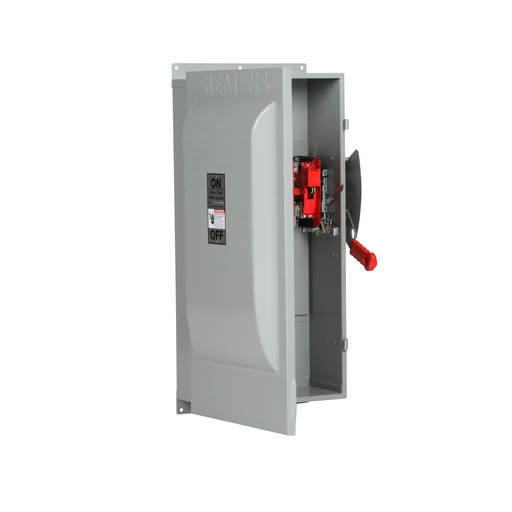

Siemens HNF364J 240/480/600 VAC 250/600 VDC 200 Amp 3-Pole 3-Wire NEMA 3R/3S/12 Heavy Duty Non-Fusible Safety Switch

Manufacturer: Siemens | Catalog # HNF364J | Codale Part # 505665
$1,449.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole Non-Fused in a type 12 industrial enclosure. Rated 600VAC (200A).

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 C
Amperage
200 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA12
Frequency
60 Hz
Insulated?
Yes
Material
Steel
Mounting Type
SURFACE
Number of Poles
3 Pole
Operating Cycles
8000
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Type
HEAVYDUTYSWITCH
Voltage
600 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643151932
Product UPC
78364315193
Weight
51.000 lb

Dimensions

Height
35 Inch
Length
19 Inch
Width
10.000 in

Certifications and Compliance

Country of Origin
Mexico
