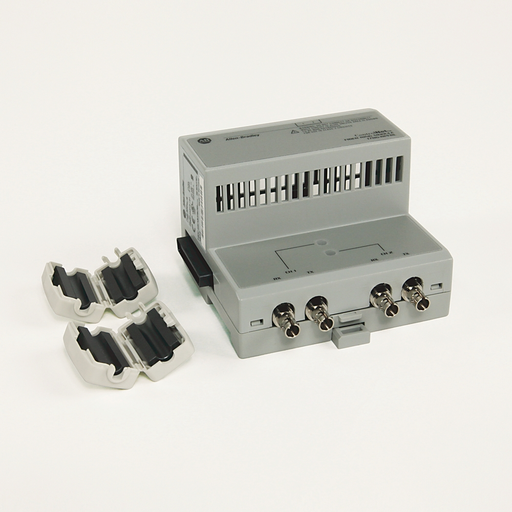

Allen-Bradley 1786-RPFRL Cnet Fiber Ring Long Distance Repeater

Manufacturer: Allen Bradley / Rockwell | Catalog # 1786-RPFRL | Codale Part # 506123
$4,847.33/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
CNet Fiber Ring Long Distance Repeater

Technical Information

Mounting Type
DIN-Rail
Number of Channels
1
Number of Ports
2
Power Supply
24 V DC Power Supply
Standard
CE,CUL,GOST,KC,MARINE,RCM,UL
Type
Dual, Long Distance
Voltage
24 VDC

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlNet™

General Product Info

12-Digit UPC
612598269129
Product UPC
61259826912
Used With
62.5/125 m Multi-Mode Cables
Weight
0.8100 lb
Features
  • Links a ControlNet™ network to a single H1 segment
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Links an EtherNet/IP™ network to a single H1 segment
  • Supports Master Device redundancy
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Displays useful field bus diagnostic information via status LEDs
  • Supports ControlNet Media redundancy
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Provides all basic diagnostic information in the input assembly
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Supports as many as 24 PA field devices
  • Supports EtherNet/IP Media redundancy
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Use with the 1786-RPFS repeater
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Includes 200 micron cable
  • Supports multiple levels of device and media redundancy
  • Self-contained, panel, or DIN-rail mountable device
