Fluke FLUKE-789 1000 VAC/VDC 30 mA Process Meter

Manufacturer: Fluke Instruments | Catalog # FLUKE-789 | Codale Part # 512563
$1,444.99/ea
ea
Log in or register to view your price, purchase history, and more!
16 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
The Fluke 787 was the first tool to combine a DMM and a loop calibrator to give process technicians double the power in one tool. Now it.s even better, the range is extended with the new Fluke 789 . the ultimate loop calibration multimeter.

Technical Information

Accuracy
0.1 %
Amperage
0-1 Amp
Applications
Measuring electrical parameters, supplying steady or ramping current to test process instruments, and providing a > 24 V loop power supply
Enclosure
Hard plastic
Enclosure Material
Plastic
Frequency
19.999 kHz
Operating Temperature
-20 To 55 degrees C
Resistance
40 MOhm
Storage Temperature
-40 To 60 degrees C
Type
Digital Multimeter
Voltage
0-1000 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969112192
Product UPC
09596911219
Weight
1.6 lb

Dimensions

Warranty Length
3 yr
Key Features
  • Ultimate troubleshooting tool for electricians and instrumentation professionals
  • Combines the functionality of a loop calibrator with the power of a precision 1000 V, 440 mA True-RMS digital multimeter

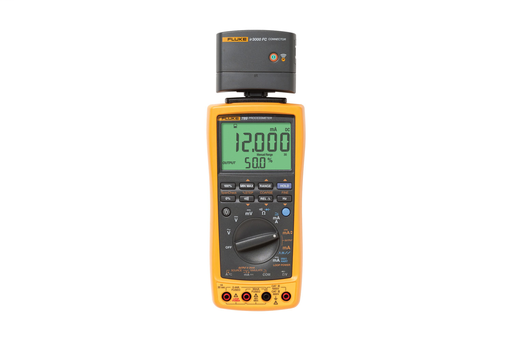

  • Optional IR3000FC module for wireless data logging capabilities via Fluke Connect® mobile App
  • Includes 24 V loop power supply
  • Features a very large dual display with enhanced two-level backlight brightness settings
Other Useful Features
  • Includes 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check
  • Provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper
  • Simultaneous displays mA and % of scale readings
  • Provides 20 mA DC current source/loop calibrator/simulator
  • Offers manual step (100%, 25%, Coarse, Fine) plus auto step and auto ramp
  • Delivers 0.1% dc voltage accuracy and 0.05% dc current accuracy
  • Provides 1200 ohm drive capability on mA source
  • Offers HART mode setting with loop power and a built-in 250 ohm resistor
  • Offers externally accessible fuses and batteries for easy replacement
Includes
  • AC175 Alligator Clips
  • Four (4) AA 1.5 V alkaline batteries (installed)
  • TL71 safety-designed test lead set
Product Overview
  • Fluke 789 ProcessMeter doubles your troubleshooting power and is Fluke Connect-enabled
  • The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a loop calibrator with the power of a digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a display that's not only twice as large as the Fluke 787B, but also twice as bright with two levels of backlighting. And its built-in, selectable 250 ohm HART® resistor eliminates the need to carry a separate resistor.

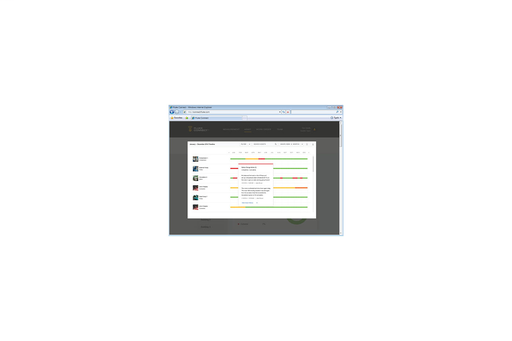

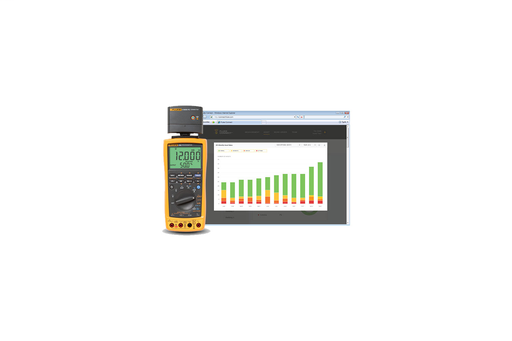

  • The 789 also has a 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can add an optional temperature measurement module and the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location. So now process technicians can do a lot more while carrying a lot less.
