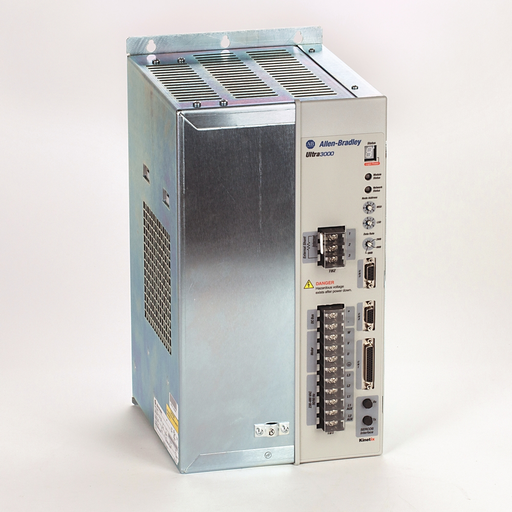

Image thumbnail 2
Image thumbnail 3
Email

Allen-Bradley 2098-DSD-HV220-SE Ultra 3000 22 kW with Sercos Servo Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 2098-DSD-HV220-SE | Codale Part # 515581
$9,020.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Ultra 3000 22kW with SERCOS Servo Drive

Technical Information

Connection Type
SERCOS Interface
Control Type
SERCOS Interface
Input Current
28 A
Input Voltage
230 - 480 VAC
Output Current
33.2 A
Power Rating
22 kW at 480 VAC, 11 kW at 230 VAC
Standard
CE,CUL,KC,UL
Tc Connection
SERCOS Interface
Temperature Rating
55 degrees C
Type
Digital
Voltage
230-480 Volt
Wattage
22 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Ultra 3000

General Product Info

12-Digit UPC
662453959542
Product UPC
66245395954
Weight
33.8400 lb
Features
  • Uses standard high-density D-Shell connectors
  • One serial port for RS-232 or RS-485 communications
  • The Ultra™ 3000 servo drive does not comply with the European Union (2011/65/EU) RoHS directive that restricts the use of hazardous substances and cannot be shipped to areas that require RoHS compliance.
  • Built-in support for multi-turn absolute encoders or an option to supply external logic power to maintain position during power loss
  • Field-programmable flash memory firmware storage
  • Eight selectable general purpose inputs
  • Four selectable general purpose outputs and relay output
