Hubbell IG5362RDUP Receptacle, IG, 20A 125V, 5-20R, RD

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # IG5362R | Codale Part # 526590
$70.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Isolated Ground, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Red, Single Pack

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grounding
Isolated Ground
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. WC596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 A

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585876894
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Heavy Duty
Product UPC
78358587689
Weight
0.25 lb

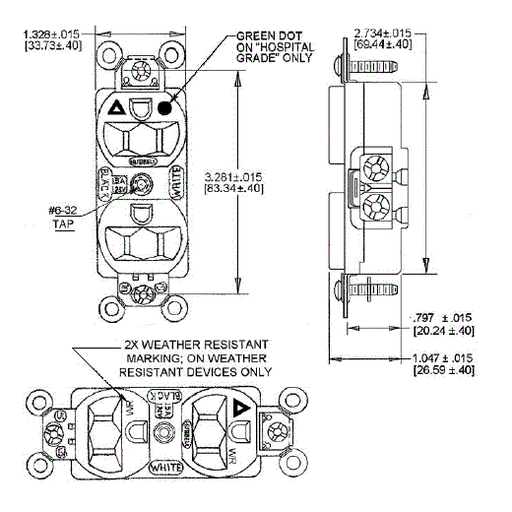

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Triangle marking on face indicates isolated ground
  • Slender compact design
  • Finder Groove Face
  • Isolated Ground
