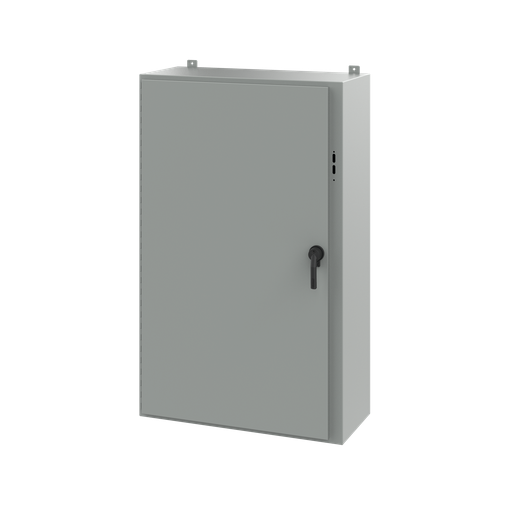

Product image for Hoffman A60SA3816LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 60" x 37.38" x 16", Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman A60SA3816LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 60" x 37.38" x 16", Steel

Manufacturer: nVent Hoffman | Catalog # A60SA3816LPPL | Codale Part # 528269
$3,292.12/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Disconnect Enclosure with Handle, Type 12, 60.00x37.38x16.00, Steel

Technical Information

Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
IP Rating
65
Material
Steel
Size
60.00x37.38x16.00 in
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510406196
Finish
Powder Coated
Product UPC
78351040619
Weight
200 lb

Dimensions

Depth
16 Inch
Height
60 Inch
Length
63-1/2 Inch
Thickness
1.9 mm
Width
37.38 in
DISK UNSPSC
39121324
Features
  • \"Model numbers ending with \"\"PL\"\" include handle and handle latching hardware\
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Oil-resistant gasket
  • Collar studs for mounting optional panels
  • Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
  • Available with or without nVent HOFFMAN supplied padlocking defeater handle and latching system
  • Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
