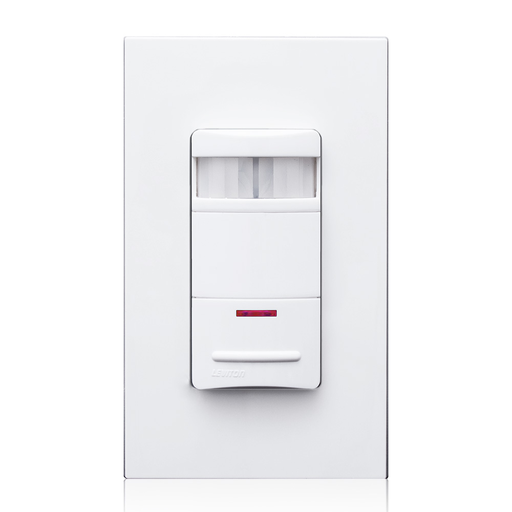

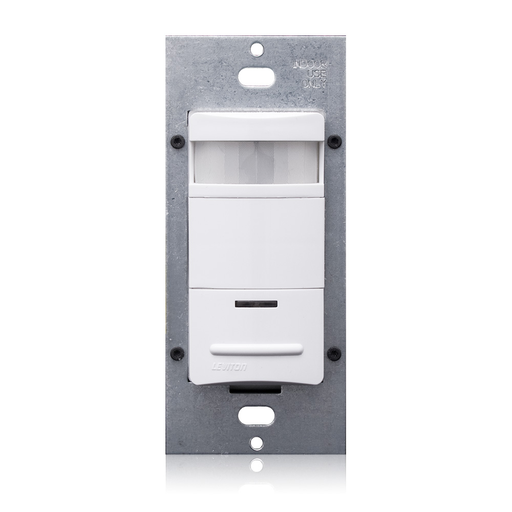

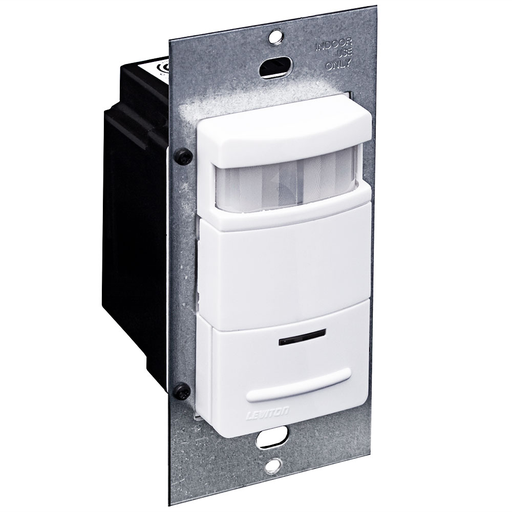

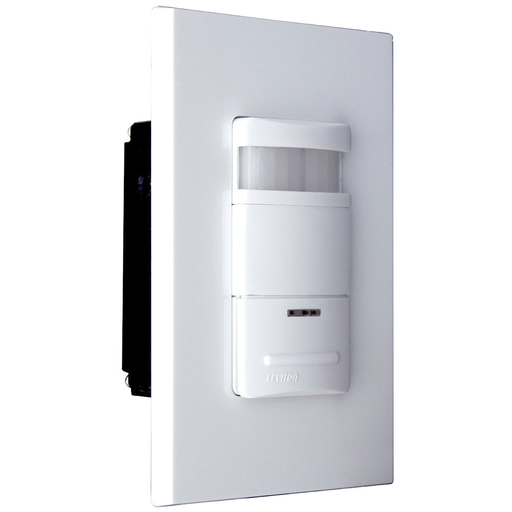

Leviton ODS10-IDW Decora Wall Switch PIR Occupancy Sensor, White

Manufacturer: Leviton | Catalog # ODS10-IDW | Codale Part # 533053
$110.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
Leviton ODS10-ID Decora Wall Switch Occupancy Sensor (120/277V rating), White

Technical Information

Amperage
10 Amp
Applications
Commercial
Coverage
2100 sq-ft
Frequency
50 Hz
Grade
Commercial
Mounting Type
Wall
Number of Poles
1 Pole
Operating Temperature
0 degrees C
Power Consumption
100 m 250m W
Response Time
30 min
Sensor Type
Wall Switch
Size
66.2 mm
Standard
CEC,CSA,FCC Regulations,NOM,Title 24,UL Listed
Switch Type
Single-Pole,Single-Pole
Temperature Rating
1 - 50 degrees C
Type
Presence Detector, Adjustable, Constant Light Control
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477010181
Color
White
Environmental Conditions
0 to 50 50 Deg C Operating
Product UPC
07847701018
Weight
0.2700 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • Fits in standard wallbox and replaces single-pole wall switch. Gangable with other units.
  • Low-profile design eliminates obtrusive scanning-device look. Elegant Decora styling complements any interior; uses Decora wallplates and coordinates with Levitons popular line of Decora wiring devices.
  • 180° field-of-view provides approximately 2100 square feet of coverage suitable for small offices, conference rooms, classrooms, lounges and a variety of commercial areas.
  • Convenient pushbutton provides manual-ON/OFF light switching at any time.

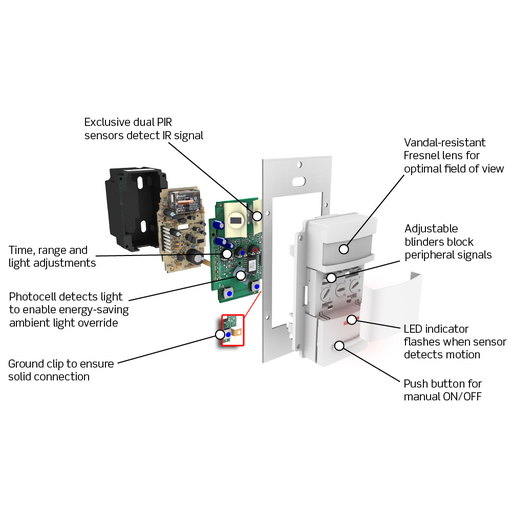

  • Two dual element PIR sensors used to widen detection range.
  • Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive minor motion area where even slight body movements will be detected.
  • Vandal resistant PIR lens.
  • Horizontal field-of-view may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required.
  • Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings.
  • To comply with T24, red LED indicator light flashes when sensor detects motion to verify detection is active.
  • Time Delay adjustment for delayed-OFF time set-tings of 30 seconds (for walking test), 10 minutes, 20 minutes, and 30 minutes. Allows customized adjustments to maximize energy savings.
  • Light Sensor Adjustable Ambient Light Override ranges from approximately 2 foot-candles (20 lux) to 500+ foot-candles (5000+ lux) to prevent lights from turning ON automatically during periods of ample natural light, increasing energy savings.
  • Light sensor enables the load hold-OFF feature once level has been set.
  • Vacancy confirmation - when the time out expires and the lights turn OFF a 30 second vacancy confirmation exists to turn the lights back ON.
  • False detection circuitry.
  • Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied.
  • One unit can be used for 120V through 277V lighting. Compatible with both electronic and magnetic ballasts.
  • Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts.
  • Exclusive Leviton H.I.S. Circuitry. Specifically designed to handle todays high inrush electronic ballast loads and offer unmatched durability and service.
  • No neutral design is optional for retrofit applications.
  • The ODS10 uses passive infrared (PIR) detection technology to monitor a room for occupancy through a segmented Fresnel lens. This specialized lens divides the field-of-view into sensor zones. When a person passes into or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as there is an occupant moving through the sensor zones. Do you have a question about an occupancy sensor or vacancy sensor?
