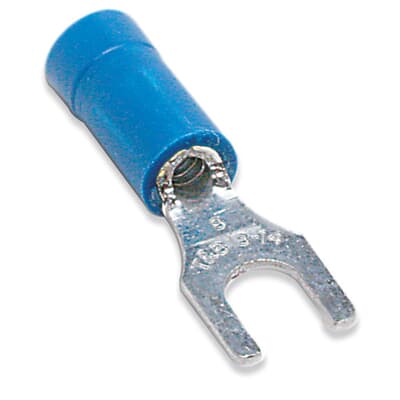

Thomas & Betts 14RB-10F Vinyl-Insulated Fork Terminal - #18-14, #10bolt

Manufacturer: ABB Thomas & Betts | Catalog # 14RB-10F | Codale Part # 5409
$107.99/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
100 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

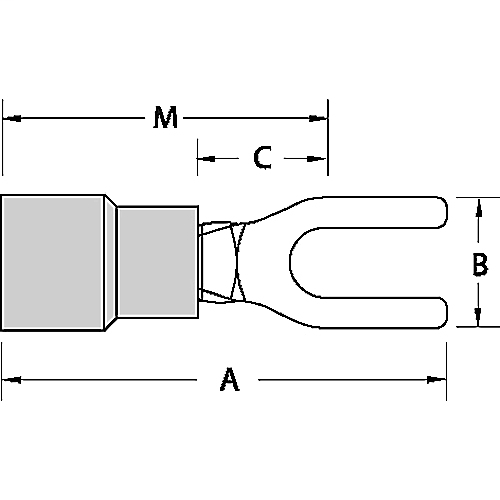

Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800707
Color
Blue
Finish
Tin Plated
Product UPC
78621080070
Used With
Round Conductors
Weight
0.2800 lb

Dimensions

Thickness
.03 in
Certifications
  • CSA
  • UL
Features
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
