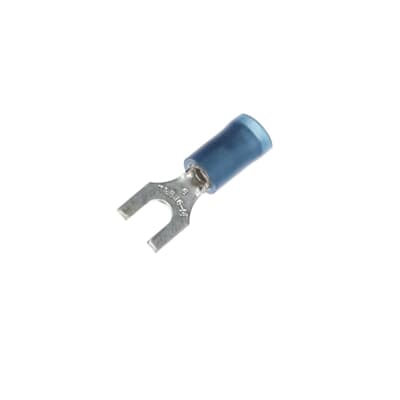

Thomas & Betts B14-6F 18 to 14 AWG #6 Stud Metallic Electrotinned Copper Non-Insulated Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RB14-6F | Codale Part # 5417
$170.95 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

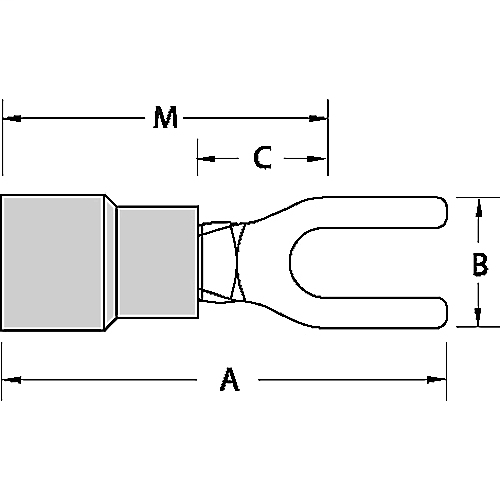

Non-Insulated Fork Terminal, Length .75 Inches, Width .31 Inches, Bolt Hole #6, Wire Range #18-#14 AWG, Copper, Tin Plated

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18 - 14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804033
Color
Blue
Finish
Electro Tin Plated
Product UPC
78621080403
Weight
0.0200 lb

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.1 in
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Certifications
  • CSA
  • UL
