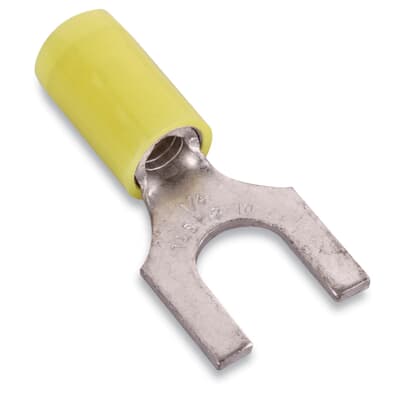

Thomas & Betts RC10-10F Nylon-Insulated Fork Terminal - #12-10, #10bolt

Manufacturer: ABB Thomas & Betts | Catalog # RC10-10F | Codale Part # 5422
$225.95/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
350 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

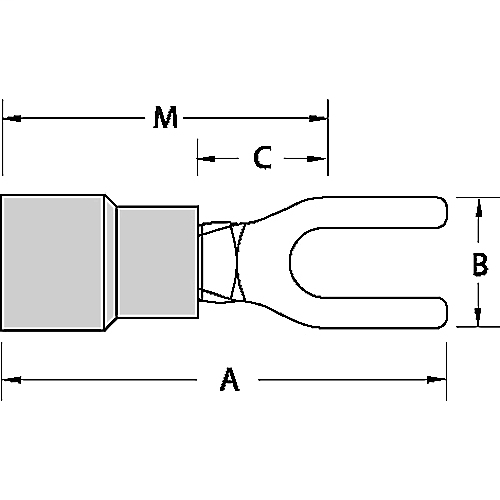

Nylon Insulated Fork Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804392
Color
Yellow
Finish
Electro Tin Plated
Product UPC
78621080439
Weight
0.3000 lb

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.1 in
Certifications
  • CSA
  • UL
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
