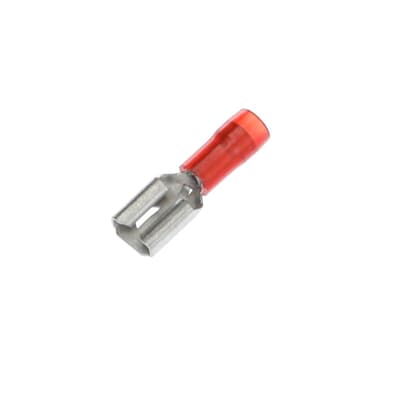

Thomas & Betts RA18-250F 22-18 AWG Wire Range .91 Inch Length .250 Inch Tab Insulated Nylon Female Disconnect

Manufacturer: ABB Thomas & Betts | Catalog # RA18-250F | Codale Part # 5486
$169.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Nylon Insulated Female Disconnect, Length .91 Inches, Width .29 Inches, Maximum Insulation .136, Tab Size .250x.032, Wire Range #22-#18, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Insulation Material
Nylon
Insulation Type
Nylon,Polyamide
Material
Brass
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210874197
Color
Red
Finish
Electro-Tin Plated
Product UPC
78621087419
Used With
Round Conductors
Weight
0.0031 lb

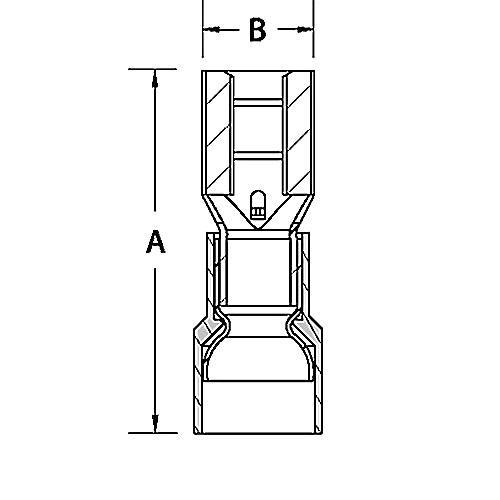

Dimensions

Length
0.91 Inch
Features
  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
Certifications
  • UL
  • CSA
