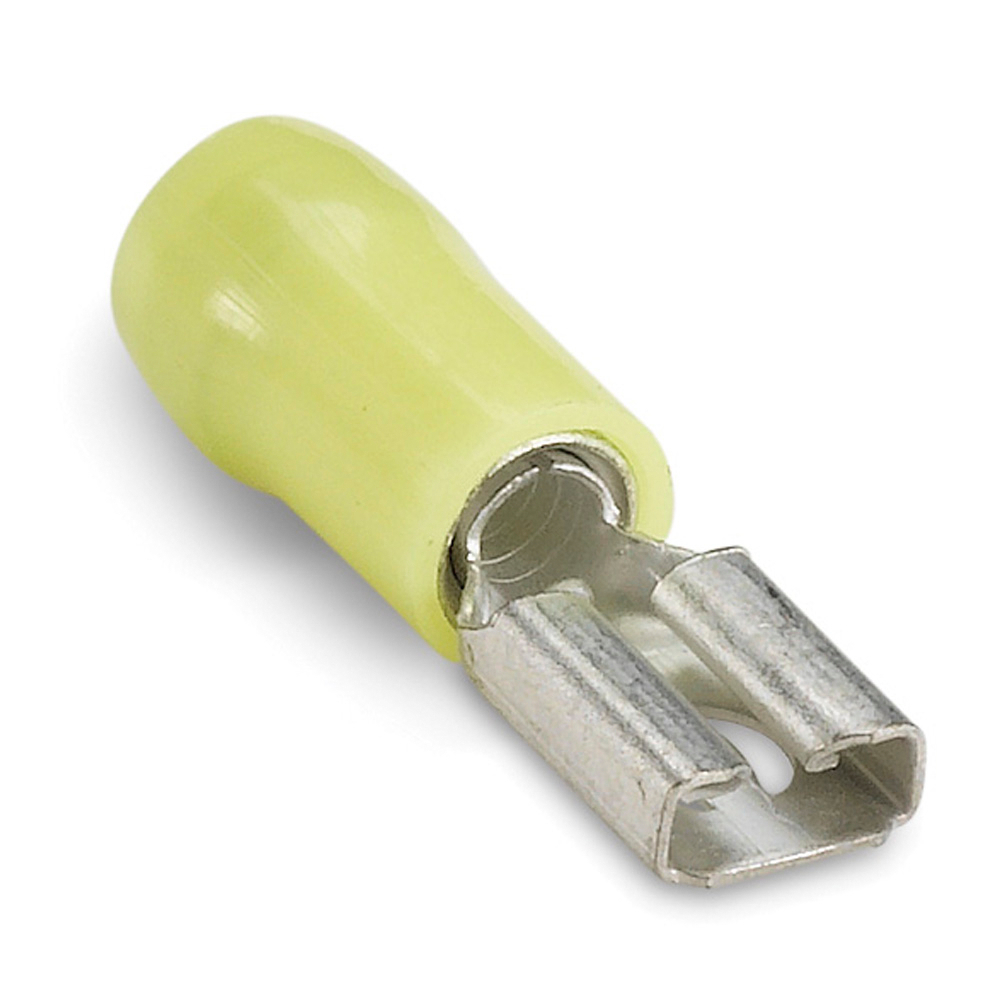

Product image for Thomas & Betts RC10-250F 12-10 AWG Wire Range 1.04 Inch Length .250 Inch Tab Insulated Nylon Female Disconnect
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts RC10-250F 12-10 AWG Wire Range 1.04 Inch Length .250 Inch Tab Insulated Nylon Female Disconnect

Manufacturer: ABB Thomas & Betts | Catalog # RC10-250F | Codale Part # 5487
$211.95/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
250 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Nylon Insulated Female Disconnect, Length 1.04 Inches, Width .29 Inches, Maximum Insulation .215, Tab Size .250x.032, Wire Range #12-#10, Color Yellow, Copper, Tin Plated, 50 Pack

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
12-10 AWG
Insulation Material
Nylon
Insulation Type
Nylon,Polyamide
Material
Brass
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210874203
Color
Yellow
Finish
Electro-Tin Plated
Product UPC
78621087420
Weight
0.3500 lb

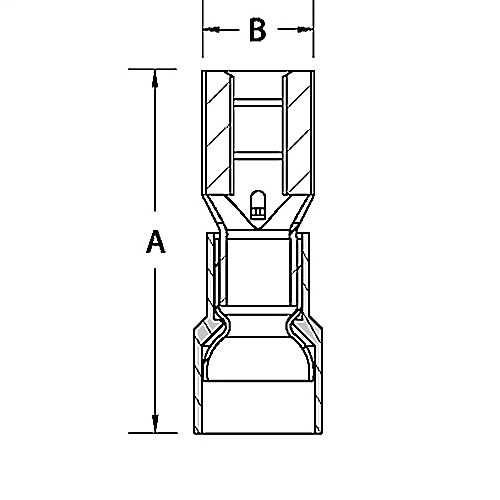

Dimensions

Length
1 Inch
Certifications
  • UL
  • CSA
Features
  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
