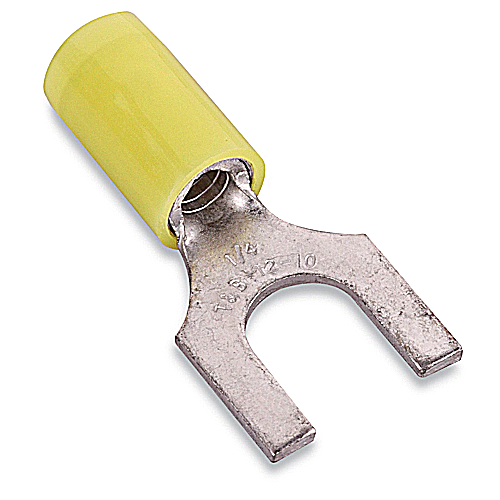

Product image for Thomas & Betts RC10-6F #6 Bolt Hole 12-10 AWG Wire Range Yellow Insulated Nylon Fork Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts RC10-6F #6 Bolt Hole 12-10 AWG Wire Range Yellow Insulated Nylon Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RC10-6F | Codale Part # 5508
$241.95/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

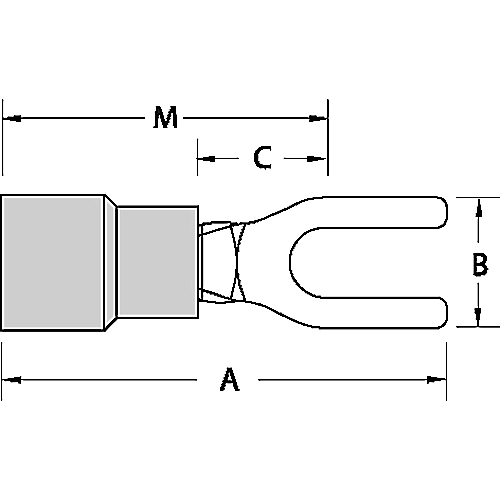

Nylon Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #6, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804323
Color
Yellow
Finish
Electro Tin Plated
Product UPC
78621080432
Weight
0.2900 lb

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.1 in
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Certifications
  • UL
  • CSA
