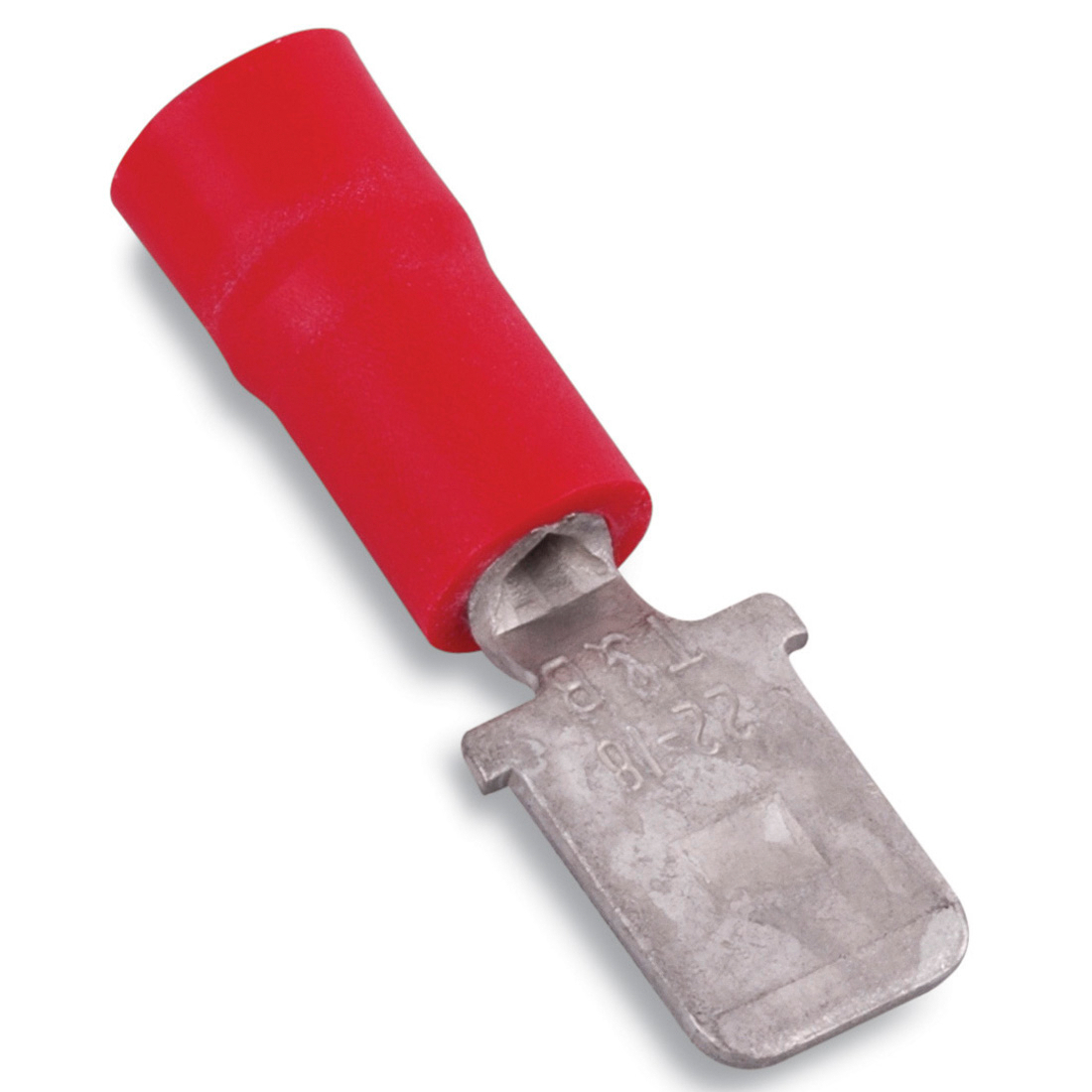

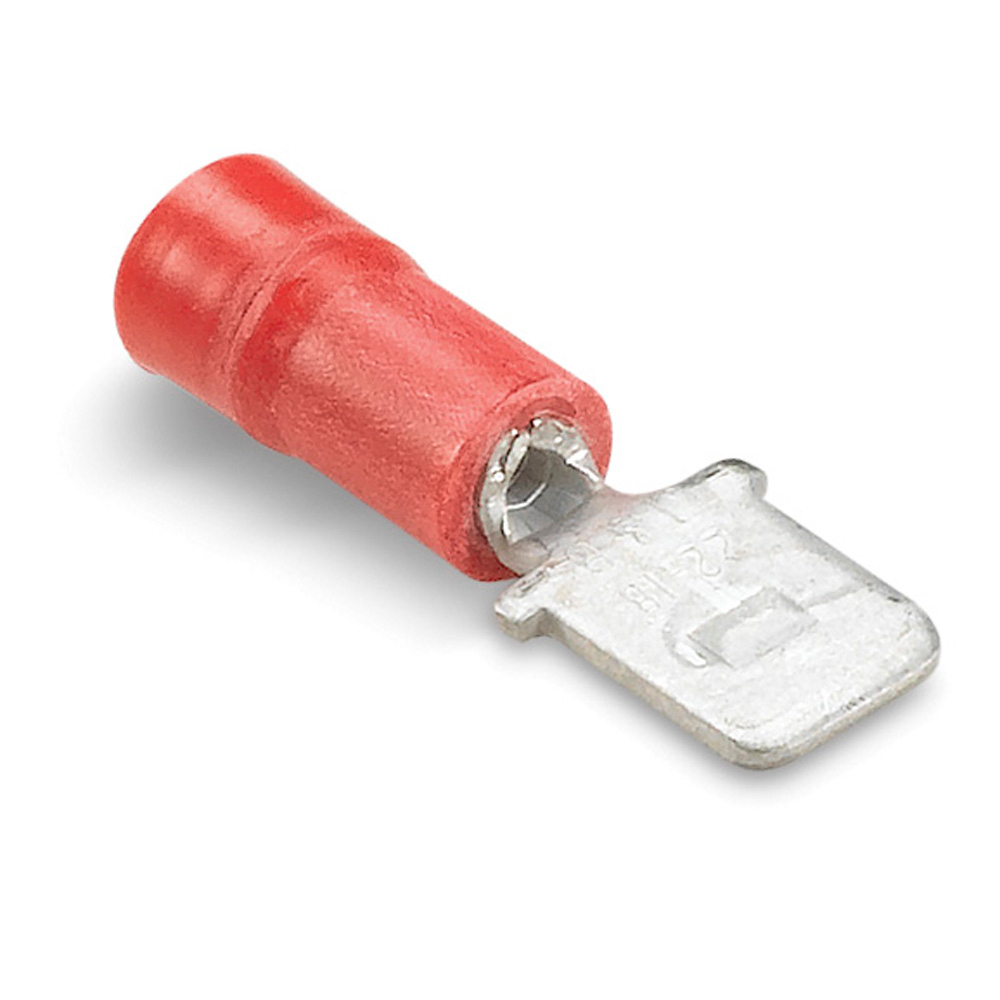

Thomas & Betts 18RA-250T 22 to 18 AWG Insulated Vinyl Male Tab

Manufacturer: ABB Thomas & Betts | Catalog # 18RA-250T | Codale Part # 5560

$110.99/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

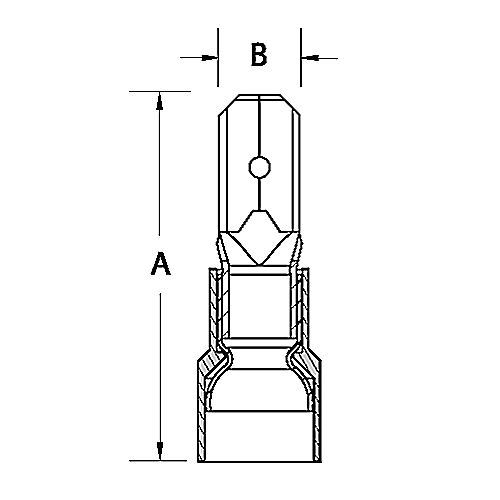

Vinyl-Insulated Male Tab, Length .95 Inches, Maximum Insulated .150, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Insulation Material
PVC
Insulation Type
Vinyl
Material
Brass
Temperature Rating
105 C
Type
Short Sleeve
Voltage
600 Volt

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Red
Finish
Electro-Tin Plated
Product UPC
78621087417
Used With
Round Conductors
Codale Part No.
5560
Color
Red
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-0
Material
Brass
Product Long Description
Vinyl-Insulated Male Tab, Length .95 Inches, Maximum Insulated .150, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
Style
Male - 250 Series
Temperature Rating
105°C
Voltage Rating
600V
  • CSA
  • UL
