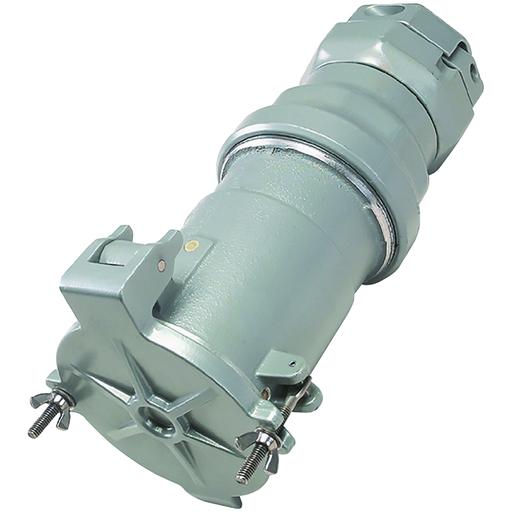

Product image for Killark VPR204212 200A 3W4P Connector Assembly
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Killark VPR204212 200A 3W4P Connector Assembly

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # VPR204212 | Codale Part # 597293
$2,175.47/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
200A 3W4P Connector Assembly

Technical Information

Amperage
200 Amp
Applications
For Industrial Applications as Pulp and Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Re?neries, Chemical Plants, Grain Facilities, Textile Manufacturing, Food Processing Facilities
Conductor Size
1 AWG-250 kcmil
Contact Material
Brass
Frequency
50-400 Hz
Material
Aluminum
Number of Poles
4 Pole
Number of Wires
3 Wire
Style
Style II
Type
Grounding Style 2
Voltage
600 VAC, 250 VDC

Manufacturer Information

Brand
Killark Electric

General Product Info

12-Digit UPC
783936833101
Environmental Conditions
Indoor or Outdoor, Hazardous or Corrosive Areas, Wet, Cold
Finish
Baked Epoxy

Dimensions

Height
7.59 Inch
Length
13.65 Inch
Width
7.59 in

Certifications and Compliance

Country of Origin
USA
Features
  • Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
  • Insulators have high mechanical and dielectric strength.
  • Increased Safety type box terminals with gripper ribs securely clamp around conductors.
  • Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
  • Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
  • Includes suitability for Type P marine cable.
  • VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
