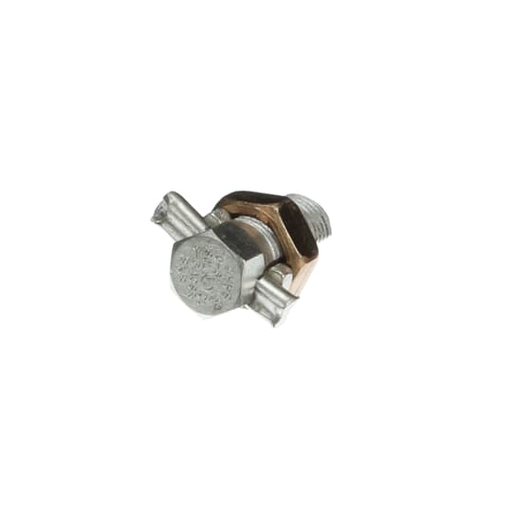

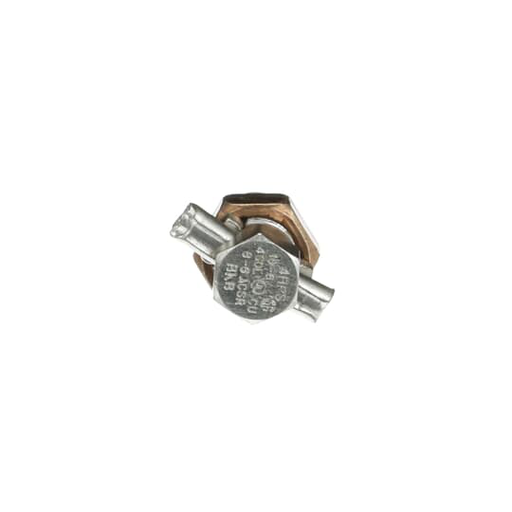

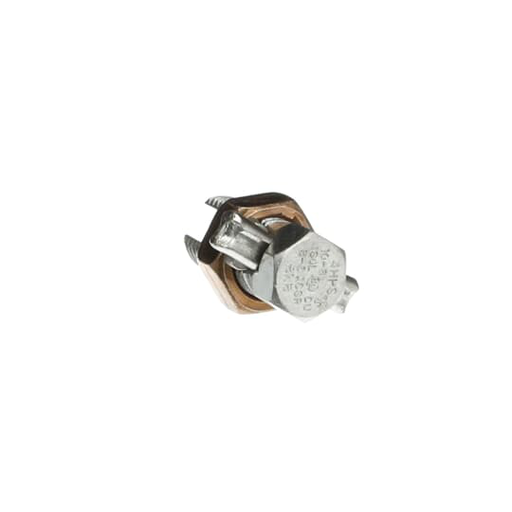

Blackburn 4HPS 4-12 AWG Copper Split Bolt Connector

Manufacturer: ABB Thomas & Betts | Catalog # 4HPS | Codale Part # 615289
$629.76/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Type HPS Split-Bolt Connector with Spacer, Conductor Range for Equal Main and Tap ACSR 6-8, Conductor Range for Equal Main and Tap CU or AL 4 Sol-12 Sol, Min Tap with One Max Main 12 Sol, Tin Plated

Technical Information

Applications
Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connection
Material
Copper
Mounting Type
Hexagon Screw
Standard
UL E9809
Type
Split-Bolt

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786200269
Color
Metallic
Finish
Electro-Tin Plated
Product UPC
78378620026
Weight
0.0850 lb
Features
  • Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Contoured spacer of electrolytic copper.
Application
  • Splicing, tapping or terminating conductors in power and grounding electrical connection.
Notes
  • Most connectors are UL and CSA Certified for copper conductor only.
  • Blackburn Contax recommended when used on aluminum conductor.
