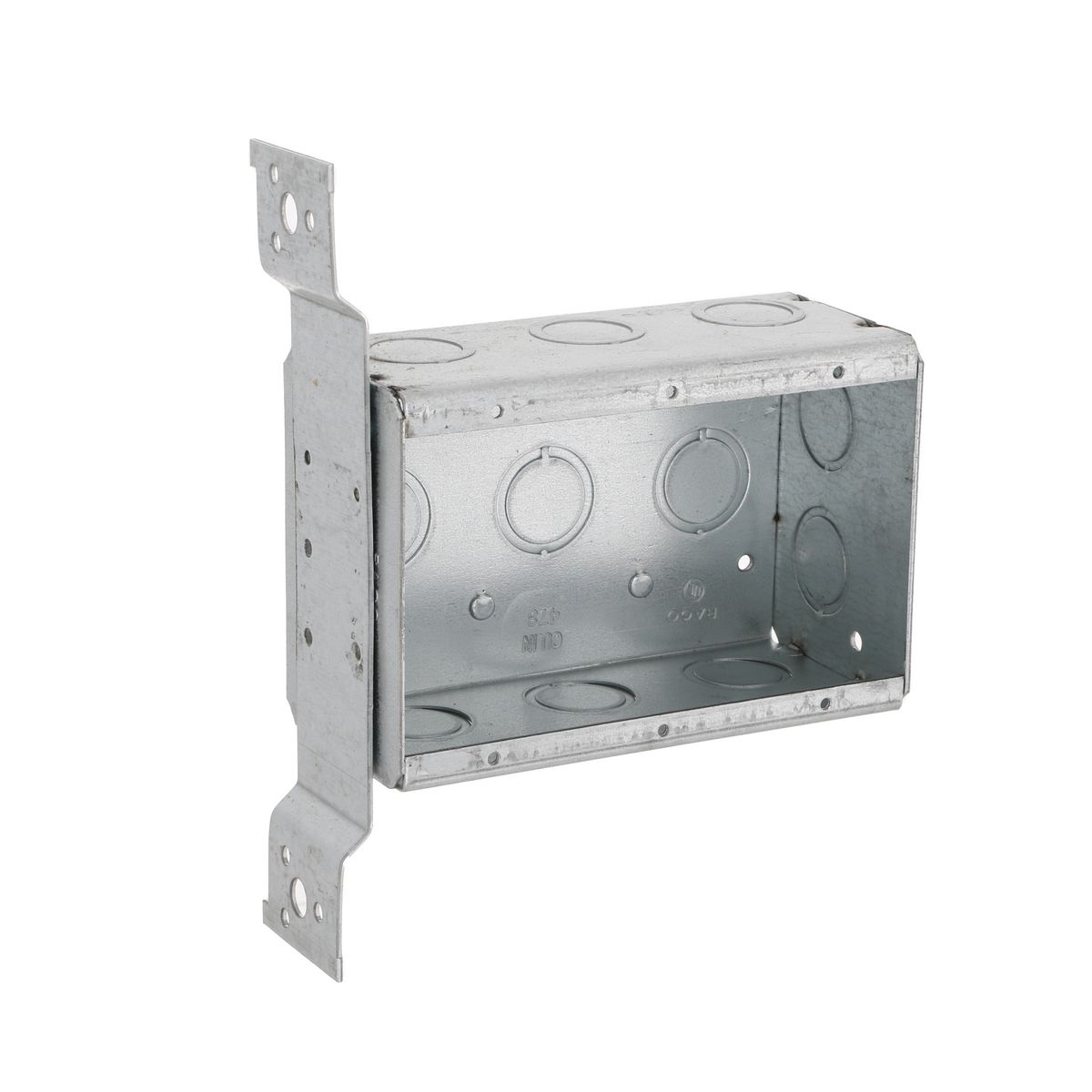

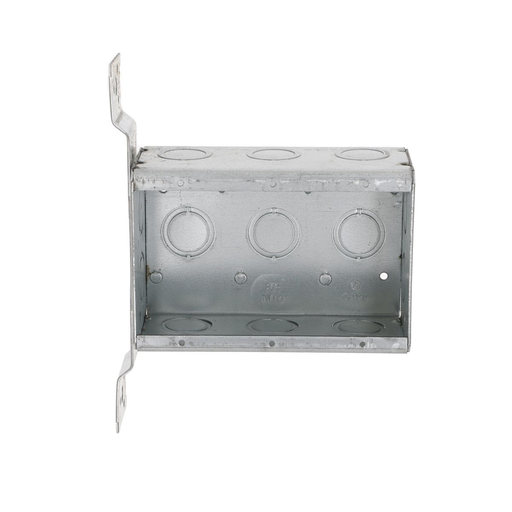

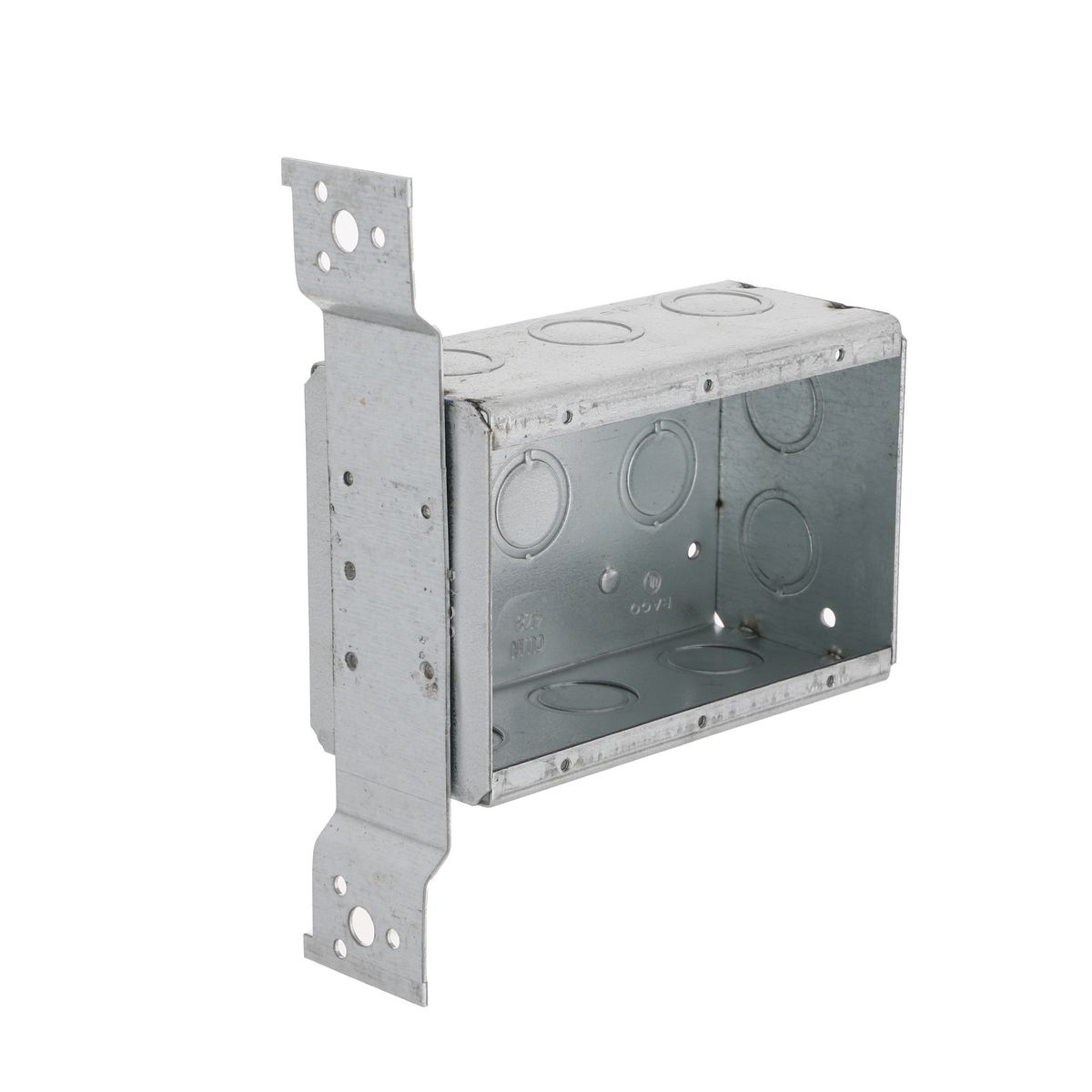

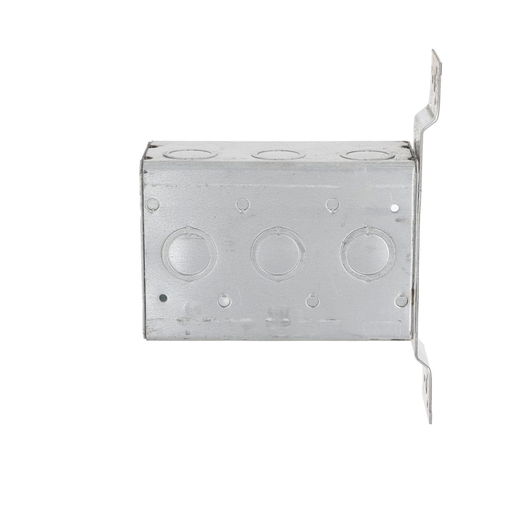

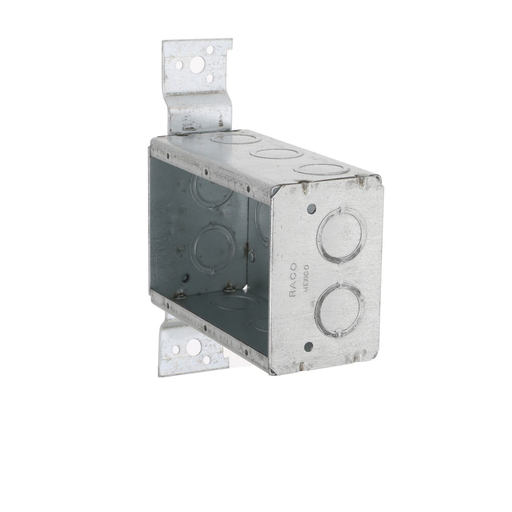

Product image for Raco 686 3-Device Box, 2-1/2" Deep, 1/2" & 3/4" Side Knockouts, Wood/Metal Stud Bracket, Welded
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Raco 686 3-Device Box, 2-1/2" Deep, 1/2" & 3/4" Side Knockouts, Wood/Metal Stud Bracket, Welded

Manufacturer: Raco | Catalog # 686 | Codale Part # 670
$11,846.84/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet MDM Safety Data Sheet
3-Gang Switch Box, Welded, 2-1/2 in Deep, Eleven 1/2 & Eleven 3/4 in. KO's

Technical Information

Applications
Electrical
Cable Entry
Knockouts for conduit
Material
Steel
Number of Gangs
3 Gang
Size
2-1/2 IN
Type
Multi-device switch box

Manufacturer Information

Brand
RACO

General Product Info

12-Digit UPC
050169006863
Color
Gray
Construction
Welded
Product UPC
05016900686
Weight
1.379 lb

Dimensions

Depth
2-1/2 Inch
Height
7-5/8 Inch
Length
2-1/2 Inch
Width
6.97 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Features
  • Reference the Box Selection section in the front of this catalog for complete description of bracket types and features.
  • Supplied with eleven (11) 1/2 and 3/4 in. concentric knockouts
  • Welded steel construction with \"FM\" bracket - 1/2 in. set back
  • Standard device spacing with tapped 6-32 holes for devices
  • Uses Raco 971 voltage partition
  • 47.8 cu. in. capacity
Prop 65
  • No
