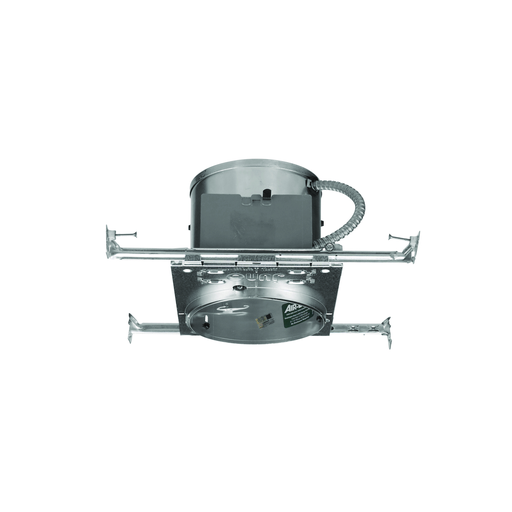

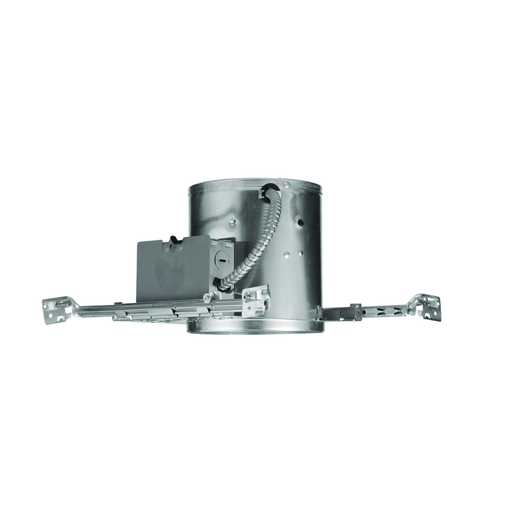

6" Incandescent Remodel IC Housing

Manufacturer: Juno Lighting | Catalog # IC22R | Codale Part # 716485
$12.87/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
These IC-rated 6-inch incandescent housings feature an Air-Loc seal to stop infiltration and exfiltration of air, reducing heating and cooling costs.

Technical Information

Aperture Size
6 in
Applications
Residential
Lamp Type
Incandescent
Lamp Wattage
90 WTT
Mounting Type
Recessed
Number of Lamps
1
Type
Housing
Voltage
120 Volt

Manufacturer Information

Brand
Juno Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
661209017673
Construction
Remodel
Environment
Indoor
Environmental Conditions
Indoor
Fixture Type
Incandescent Line Voltage
Product UPC
66120901767
Shape
Round
Weight
2 lb

Dimensions

Height
7-1/8 Inch
Length
13-3/4 Inch
Width
7.125 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • Features a drop socket with spring to accommodate certain trim installation
  • IC22R, recommended lamps: A19/BR30/BR40/PAR16/PAR20/PAR30/PAR30L/PAR38/R20
  • Medium base porcelain with nickel-plated copper screw shell
  • UL Listed, CSA certified to US and Canadian standards, Listed for damp locations
  • Standard 120 volts used in most residential applications
  • Does not include light source
  • Pre-wired junction box provided with (5) 1/2 and (1) 3/4 knockouts, (4) Non-metallic sheathed cable connectors and ground wire
  • Emergency battery back-up not included in this version
  • 1-year limited warranty
  • Dimensions: Height 7-1/8-in. x Full Width 13-1/2-in. x Full Length 7-5/16-in.
Standards
  • cUL
  • UL
Applications
  • Residential
