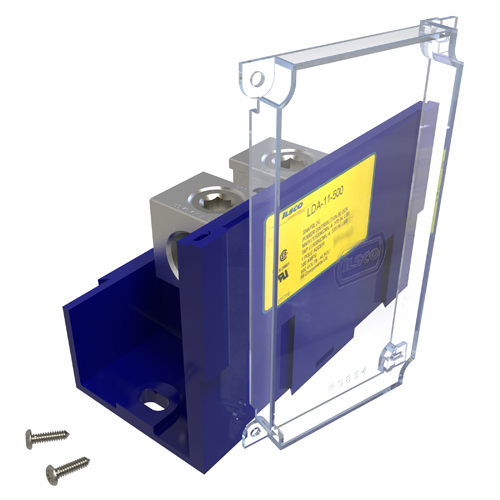

Product image for Ilsco LDA-11-500 Snapbloc Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 500-4, Load Range 500-4, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, Adder Block, UL, CSA, Includes Cover
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco LDA-11-500 Snapbloc Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 500-4, Load Range 500-4, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, Adder Block, UL, CSA, Includes Cover

Manufacturer: Ilsco | Catalog # LDA-11-500 | Codale Part # 72833
$155.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Snapbloc Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 500-4, Load Range 500-4, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, Adder Block, UL, CSA, Includes Cover

Technical Information

Amperage
CU:380 AMP
Applications
Power Distribution Block, Modular Design
Enclosure
Thermoplastic
Material
Aluminum
Number of Conductors
2
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
LDB:SNAP BLOCKS UL
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Snapbloc

General Product Info

12-Digit UPC
783669595017
Color
Blue
Finish
Tin Plated
Product UPC
78366959501
