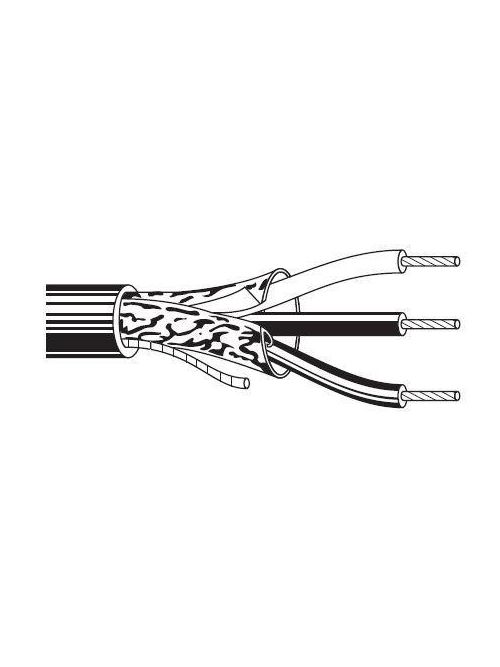

Product image for BELDEN 8770 0601000 18/3 SHIELDED PVC JACKETED 300V
Image thumbnail 0
Image thumbnail 1
Email

BELDEN 8770 0601000 18/3 SHIELDED PVC JACKETED 300V

Manufacturer: Belden | Catalog # 8770 | Codale Part # 75866
$4,681.95/m (1000 ft)
ft
Log in or register to view your price, purchase history, and more!
1,000 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Electronic, 3 Conductor 18AWG (16x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM

Technical Information

Amperage
5.3 Amp
Applications
For Indoor Applications
Bend Radius
2.5 in
Conductor Material
Tinned Copper
Conductor Size
18 AWG
Insulation Material
Polyethylene
Insulation Thickness
0.018 in
Material
PVC
Number of Conductors
3
Shield Type
Foil
Shielding Type
Copper Tape(s),Foil(s) Tape(s)
Stranding
16x30
Temperature Rating
-20 to 60 degrees C
Type
Electronic
Voltage
300 Volt

Manufacturer Information

Brand
Belden
Sub Brand
Overall Beldfoil®

General Product Info

12-Digit UPC
981001038006
Jacket Color
Chrome
Jacket Material
PVC
Jacket Thickness
0.033 in
Product UPC
87700601000
Used With
Low Voltage Analog Signals (4 - 20 mA, 0 - 10 V), Low Voltage Control (24 V), Line Level Audio, Voice Communications, Panel Wiring
Weight
0.5700 lb

Dimensions

Outside Diameter
0.246 in
Suitable Applications
  • low voltage analog signals (4-20ma, 0-10v, ...)
  • low voltage control (24v, )
  • line level audio
  • voice communications
  • panel wiring
