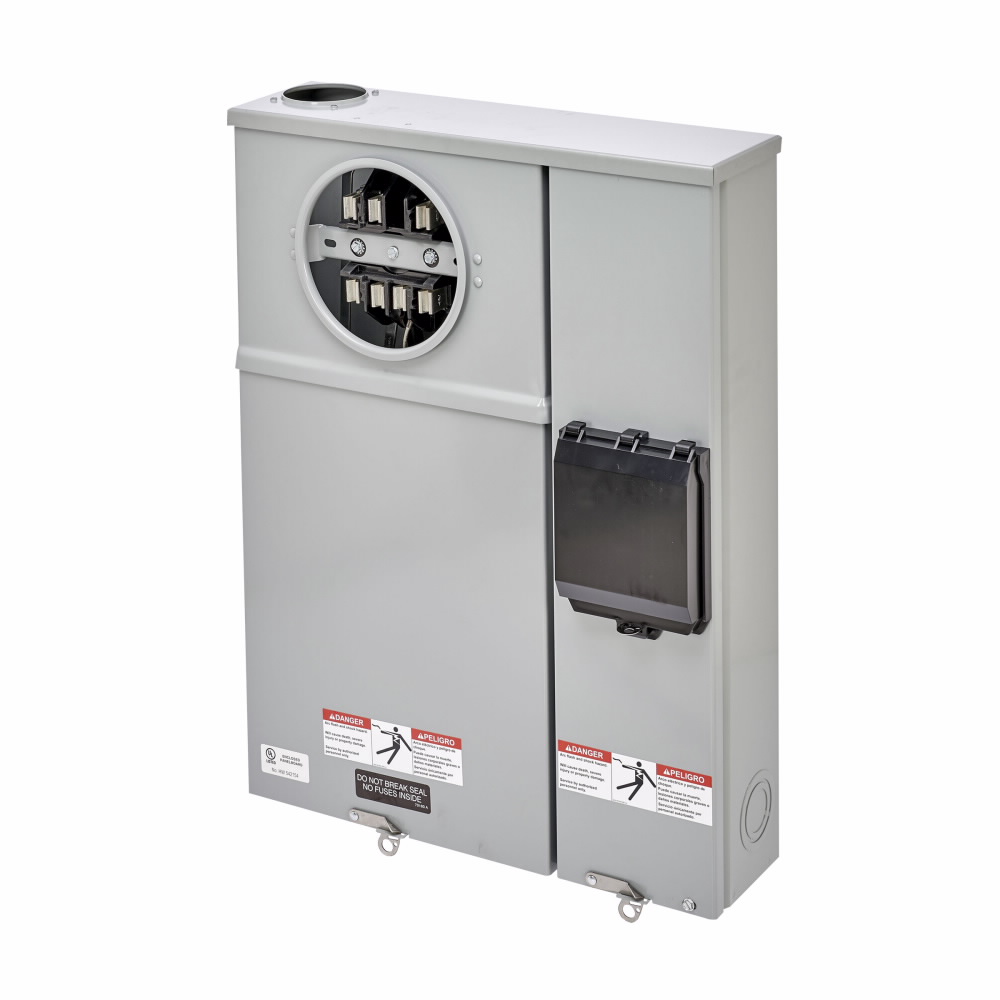

Product image for B-Line U217-MTB Meter Breaker, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, 022 kAIC, #6-250 MCM, MCB, Steel, Surface mount, 7 jaws, 1 position, 3?/4W, Overhead feed
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

B-Line U217-MTB Meter Breaker, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, 022 kAIC, #6-250 MCM, MCB, Steel, Surface mount, 7 jaws, 1 position, 3?/4W, Overhead feed

Manufacturer: Eaton B-Line | Catalog # U217MTB | Codale Part # 78050
$1,510.22/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Eaton B-Line series meter breakers, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, 022 kAIC, #6-250 MCM, MCB, Steel, Surface mount, 7 jaws, 1 position, 3?/4W, Overhead feed

Technical Information

Amperage
100 Amp
Applications
METER MAIN LOAD CENTER,TEST BLOCK BYPASS,Underground, Overhead, Watthour Meters
Cable Entry
Knockouts
Enclosure
NEMA 3R
Interrupt Rating
10 kAIC
Material
Steel
Mounting Type
Surface
Number of Phases
3 Phase
Number of Wires
4 Wire
Size
18 In Width X 4-5/8 In Depth X 24 In Height
Type
Ring,Self Contained,Test Block Bypass
Voltage
120/208 Volt

Manufacturer Information

Brand
B-Line
Sub Brand
Metering

General Product Info

12-Digit UPC
782051451528
Product UPC
78205145152
Weight
35.2 lb

Dimensions

Height
24 Inch
Length
4-5/8 Inch
