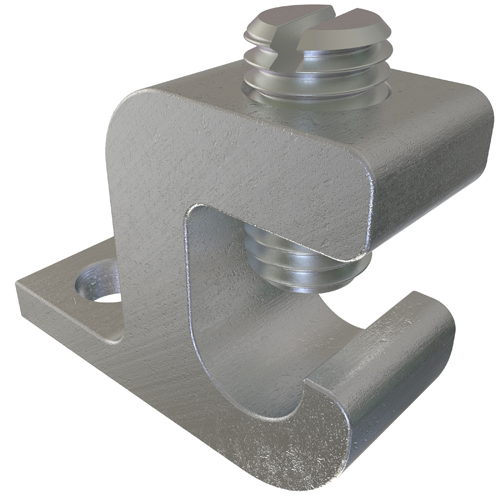

Ilsco GBL-4 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 4-14, Tin Plated, UL

Manufacturer: Ilsco | Catalog # GBL-4 | Codale Part # 78418
$3.60/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Lay-in Ground Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size #10 in, UL 467 Listed, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted,

Technical Information

Applications
Lay-in Ground Lug
Conductor Material
Copper
Conductor Size
14-4 AWG
Connector Type
Clamp Screw
Material
Aluminum
Mounting Hole Size
7/32 in
Number of Conductors
1
Standard
UL File Number: E6207,UL Specifications: UL 467
Stud Size
#10
Tc Connection
Mechanical
Type
GBL:LAY-IN AL/CU

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669960051
Finish
Tin Plated
Product UPC
78366996005
Weight
2.3200 lb
