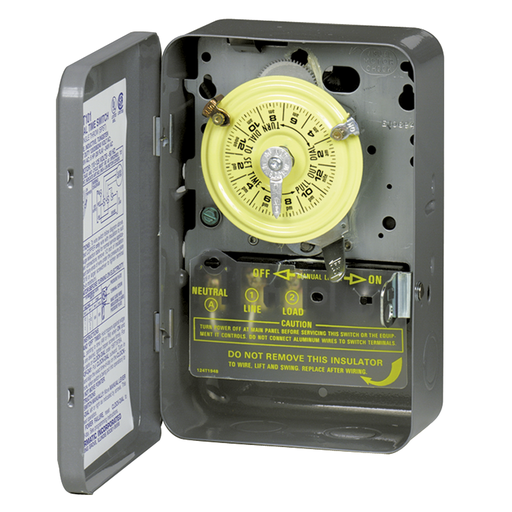

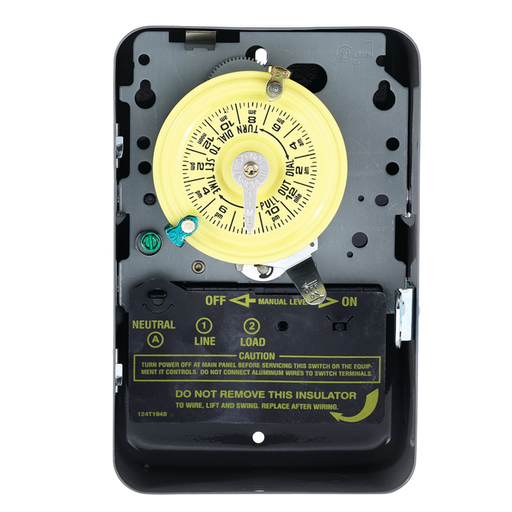

Intermatic T102 NEMA 1 Steel Case 208 to 277 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch

Manufacturer: Intermatic | Catalog # T102 | Codale Part # 82194
$129.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Technical Information

Action
SPST
Amperage
40 Amp
Applications
Commercial, Industrial, Residential, Indoor, HVACR
Connection Type
Teeter Type
Contact Configuration
SPST - 1 NO
Contact Rating
40 A at 120 - 277 VAC (Tungsten), 40 A at 120 - 480 VAC (Resistive)
Enclosure
NEMA 1
Frequency
60 Hz
Input Voltage
208-277 V
Max Operating Temperature
130 degrees F
Max Wire Size
8 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Power Source
5 hp
Size
5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM
Switch Type
SPST
Tc Connection
Teeter Type
Temperature Rating
-40 to 130 degrees F
Type
Electromechanical
Voltage
208-277 VAC
Wattage
3 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275102217
Color
Gray
Product UPC
07827510221
Weight
2.5100 lb

Dimensions

Depth
3.437 Inch
Height
7-7/8 Inch
Warranty Length
1 yr
Width
5.125 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • Direct 24-hour control of most loads
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper included
  • NA
