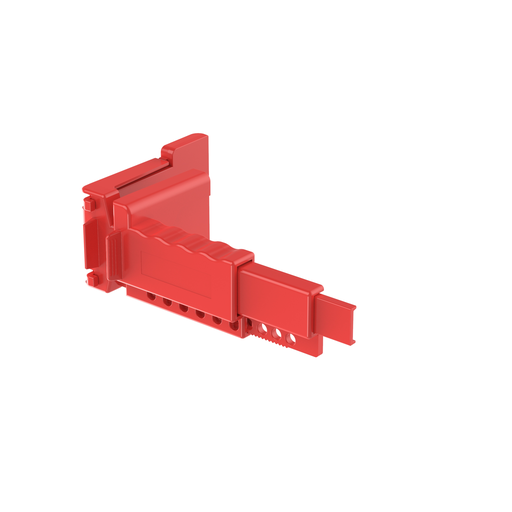

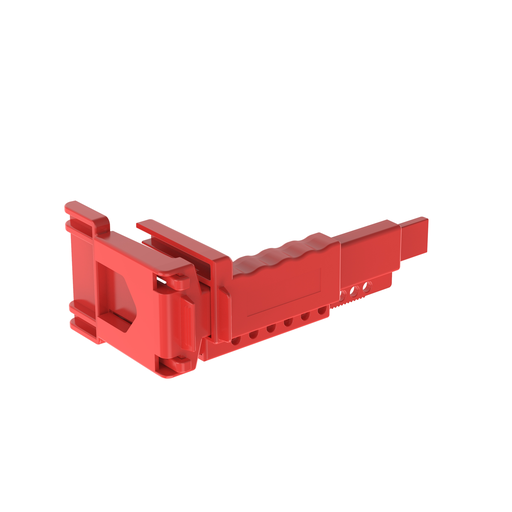

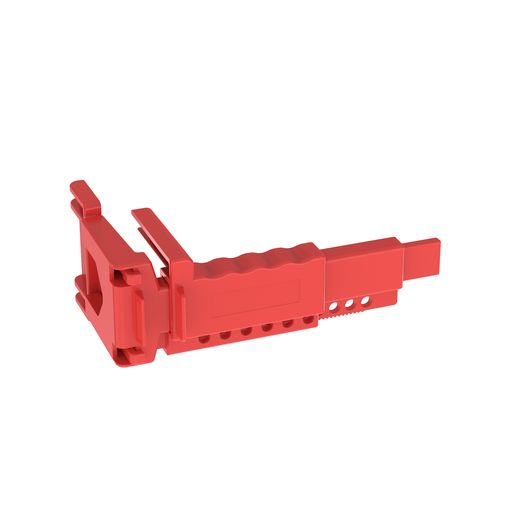

Product image for Panduit PSL-BV2 Ball Valve Lockout Device, 1.25" - 3.00" Valve size, Red
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit PSL-BV2 Ball Valve Lockout Device, 1.25" - 3.00" Valve size, Red

Manufacturer: PANDUIT | Catalog # PSL-BV2 | Codale Part # 82441
$136.87/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The PSL-BV2 Ball Valve Lockout is constructed of rugged polypropylene providing strength, durability, and added security. The Ball Valves regulating hydraulic, pneumatic, and chemical energy can be locked out quickly and easily. The valve accommodates valve diameters ranging from 1.25" (31.8 mm) to 3" (76.20 mm) with a maximum handle length of 7.5" (190.5 mm). Polypropylene. 3.7" x 7.5" (94.6 mm x 190.5 mm). Color Red. 1 per package.

Technical Information

Applications
For Ball Valves Regulating Hydraulic, Pneumatic and Chemical Energy can be Locked Out Quickly and Easily
Material
Polypropylene
Max Operating Temperature
101 degrees C
Min Operating Temperature
-40 degrees C
Temperature Rating
-40 to 101 degrees C
Type
Swivel Ball

Packaging

Pkg Qty
1
Standard Packaging Qty
1/Pack

Manufacturer Information

Brand
Panduit Corp.

General Product Info

12-Digit UPC
074983342242
Color
Red
Product UPC
07498334224
Used With
1/4 - 3 in Valve Pipe
Weight
0.6200 lb

Dimensions

Depth
7-1/2 Inch
Overall Length
7.5 in
Width
3.7 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
