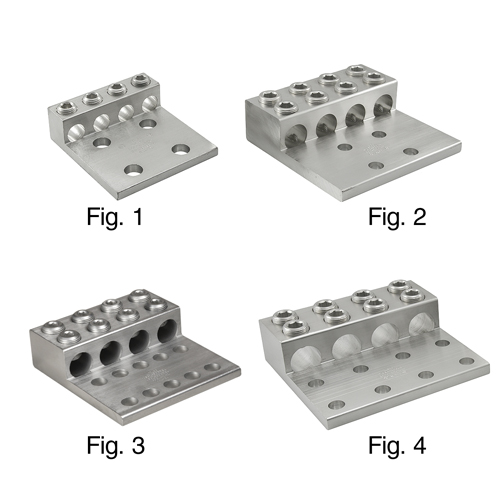

Image thumbnail 2
Email

Ilsco T4A4-250N Aluminum Mechanical Lug, Conductor Range 250-6, 4 Ports, 4 Holes, 1/2in Bolt Size, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # T4A4-250N | Codale Part # 85978
$113.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, Four Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,4 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 4 conductors, 4 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Aluminum and Copper Conductor
Conductor Material
Aluminum,Copper
Conductor Size
6 AWG-250 kcmil
Conductor Type
Aluminium, Solid, Stranded, Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
1-3/4 in
Number of Conductors
4
Number of Holes
4 Hole
Standard
UL Specifications: UL 486A-B,UL File Number: E6207,CSA File Number: LR-29601
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Dual-Rated
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669912159
Color
Silver
Finish
Tin Plated
Product UPC
78366991215
Weight
0.625 lb

Dimensions

Height
1.187 Inch
Length
4 Inch
Width
3.687 in
