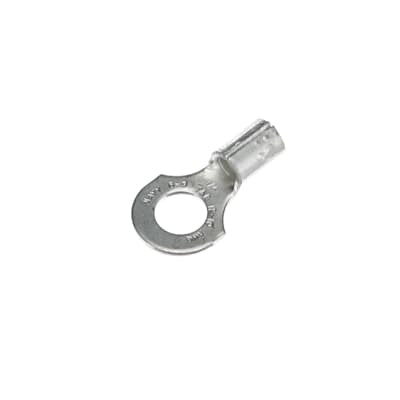

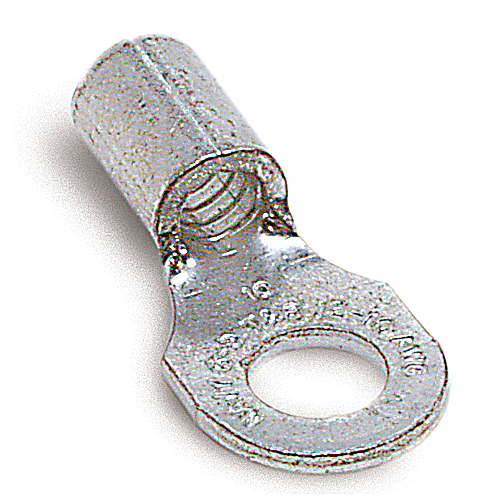

Product image for Thomas & Betts C10-14 Non-Insulated Ring Terminal - #12-10, 1/4"bolt
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts C10-14 Non-Insulated Ring Terminal - #12-10, 1/4"bolt

Manufacturer: ABB Thomas & Betts | Catalog # C10-14 | Codale Part # 8638
$125.99/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
100 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

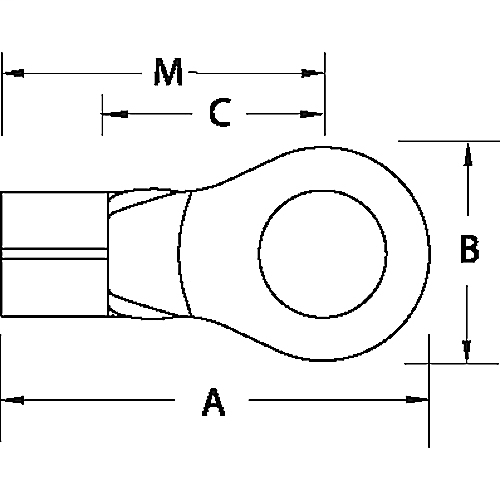

Non-Insulated Ring Terminal, Length .91 Inches, Width .50 Inches, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Serrated
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Stud Size
1/4 in
Temperature Rating
150 degrees C
Terminal Type
C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803494
Color
Metallic
Finish
Tin Plated
Product UPC
78621080349
Used With
Round Conductors
Weight
0.2600 lb

Dimensions

Thickness
.04 in
Certifications
  • UL
  • CSA
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
