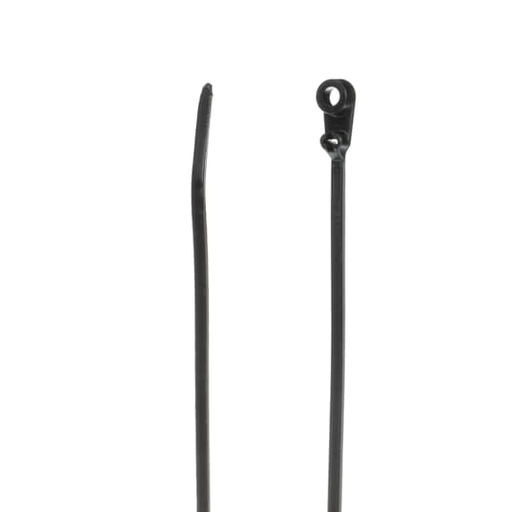

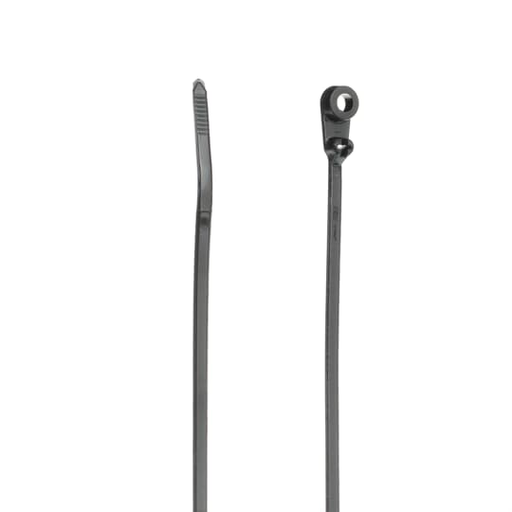

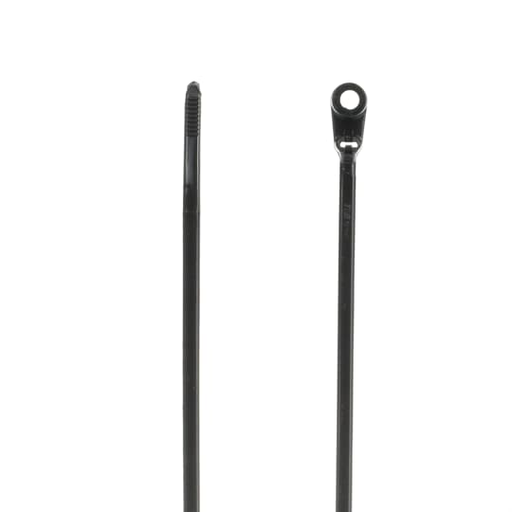

Thomas & Betts TY534MX #8 Bolt Hole 6 Inch 40 lb Ultraviolet Black Mounting Hole Cable Tie

Manufacturer: ABB Thomas & Betts | Catalog # TY534MX | Codale Part # 8816
$84.99/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Integrated Mounting Hole Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, Length of 152mm (6 Inches), Width of 3.6mm (0.14 Inch), Thickness of 1mm (0.04 Inches), Tensile Strength Rating of 177 Newtons (40 Pounds), #8 Screw for Mounting

Technical Information

Bundle Diameter
0.08 - 1.14 in
Material
Nylon
Temperature Rating
-40 to 85 degrees C
Tensile Strength
40 lb
Type
Mounting Head

Manufacturer Information

Brand
ABB
Sub Brand
Ty-Rap®

General Product Info

12-Digit UPC
786210807010
Color
Black
Product UPC
78621080701
Weight
0.1700 lb

Dimensions

Length
153 mm
Thickness
0.036 in
Width
0.09 in
Features
  • The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
  • Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
