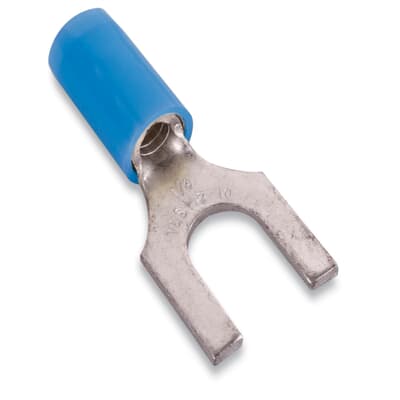

Product image for Thomas & Betts RB1123 #8 Bolt Hole 18-14 AWG Wire Range Blue Insulated Nylon Fork Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts RB1123 #8 Bolt Hole 18-14 AWG Wire Range Blue Insulated Nylon Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RB1123 | Codale Part # 9275
$76.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

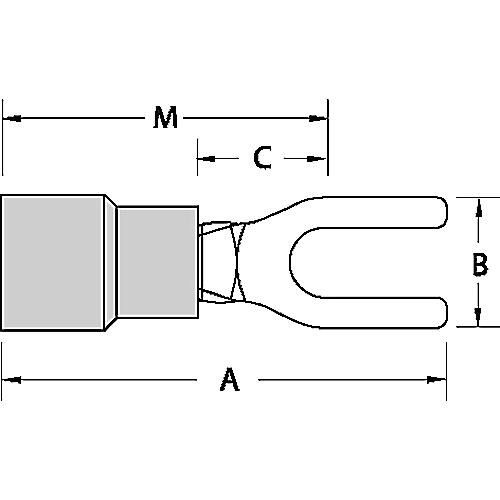

Nylon Insulated Fork Terminal, Length .87 Inches, Width .31 Inches, Maximum Insulation .162, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack

Technical Information

Conductor Size
18-14 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210819068
Color
Blue
Finish
Electro Tin Plated
Product UPC
78621081906
Weight
0.0200 lb
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
