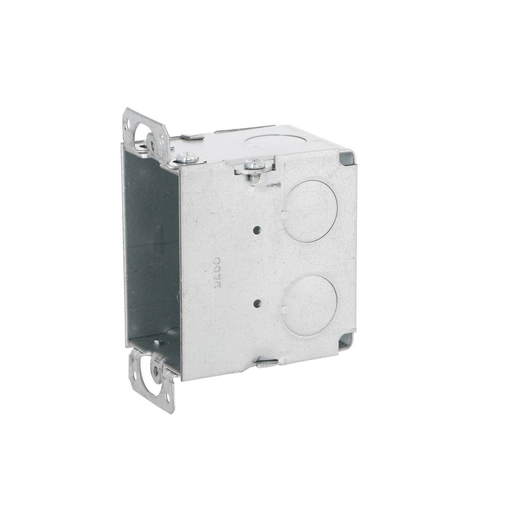

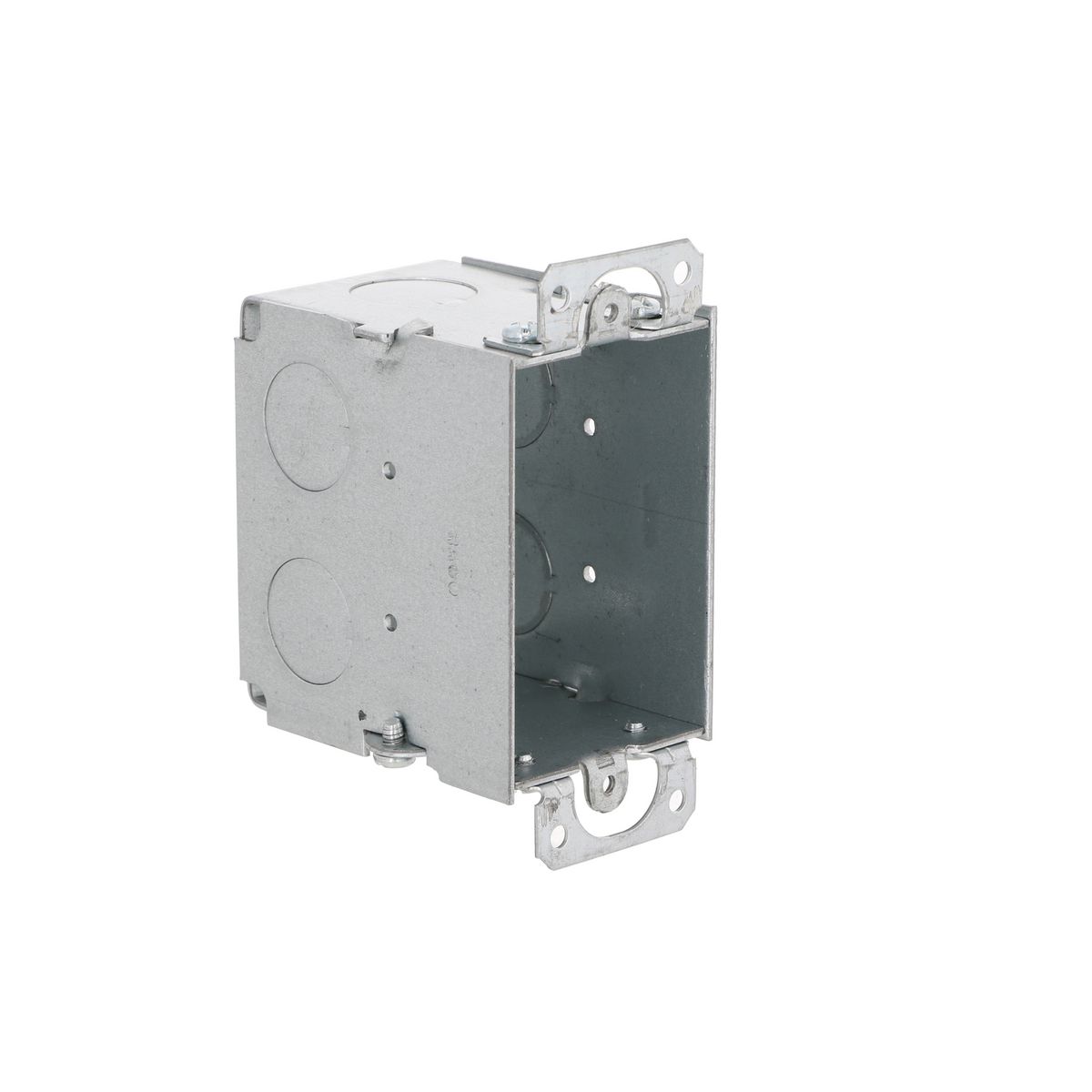

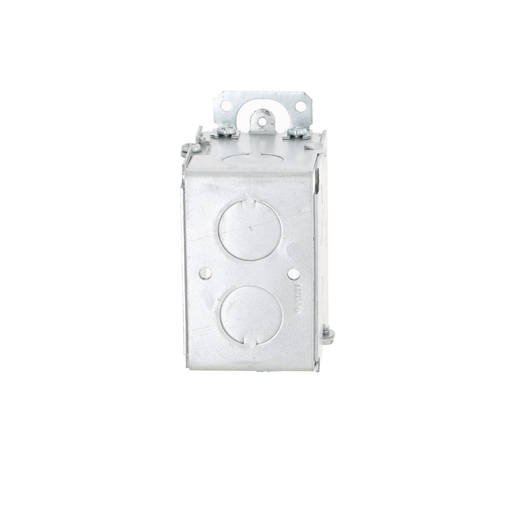

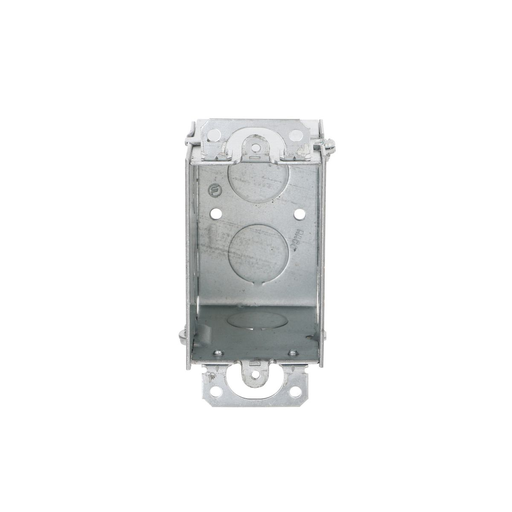

Raco 560 3" x 2" Switch Box, 2-3/4" Deep, Gangable, 1/2" End Knockouts, w/Plaster Ears

Manufacturer: Raco | Catalog # 560 | Codale Part # 941
$3,322.85/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
100 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet MDM Safety Data Sheet
3 in. x 2 in. Switch Box, Gangable, 2-3/4 in. Deep, Eight 1/2 in. KO's, Plaster Ears

Technical Information

Applications
Electrical
Cable Entry
Knockouts for conduit
Material
Steel
Number of Gangs
1 Gang
Size
2-3/4 IN
Type
Non-Reversing

Manufacturer Information

Brand
RACO

General Product Info

12-Digit UPC
050169005606
Color
Gray
Construction
Gangable
Product UPC
05016900560
Weight
0.597 lb

Dimensions

Depth
2-3/4 Inch
Height
4.219 Inch
Length
2-3/4 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Features
  • 3 in. x 2 in., 2-3/4 in. deep
  • Gangable switch boxes offer the option of constructing a box to hold two or more devices
  • With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable
  • Supplied with eight 1/2 in. knockouts
  • Includes plaster ears for \"cut-in\" or \"old work\" applications
  • 14 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls
