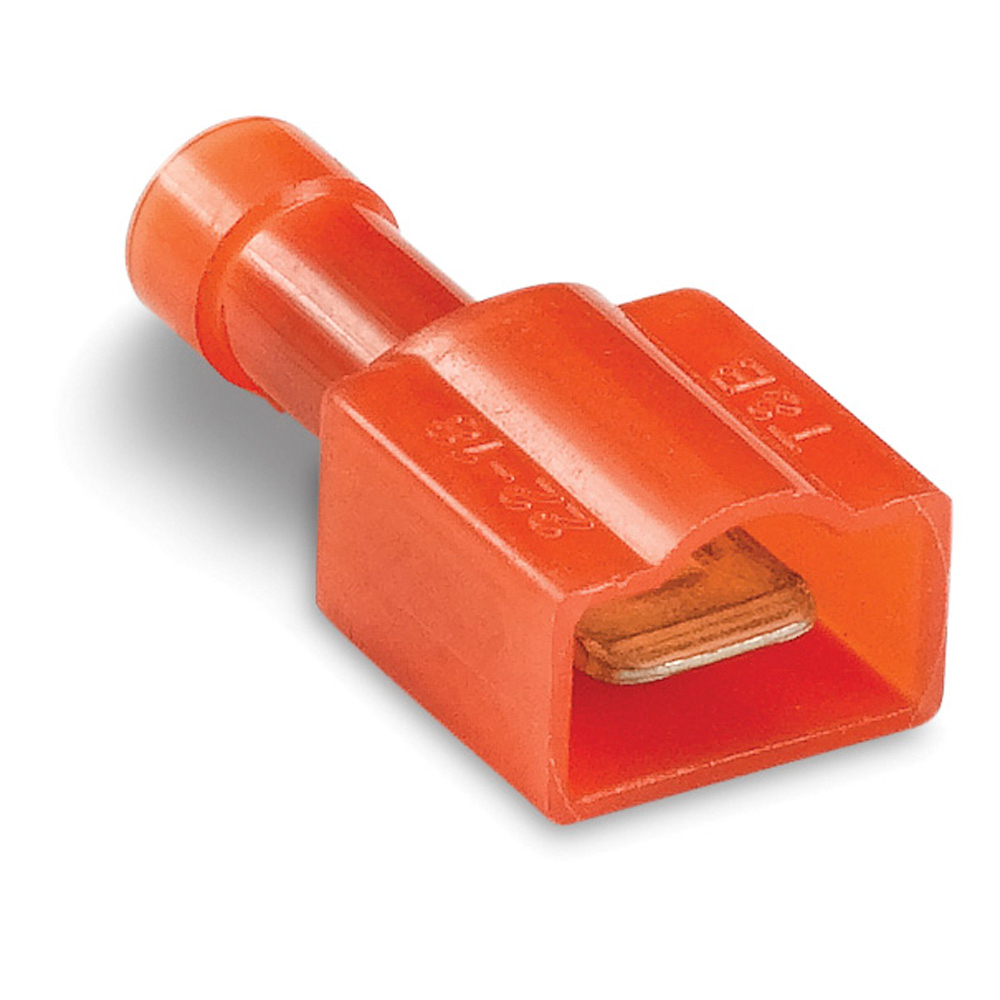

Product image for Thomas & Betts 18RA-251T 22-18 AWG Wire Range .250 Inch Tab Full Insulated Nylon Male Tab
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts 18RA-251T 22-18 AWG Wire Range .250 Inch Tab Full Insulated Nylon Male Tab

Manufacturer: ABB Thomas & Betts | Catalog # 18RA-251T | Codale Part # 9905
$163.95/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Nylon-Insulated Male Tab, Length .95 Inches, Maximum Insulated .150, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Insulation Material
Nylon
Insulation Type
Nylon,Polyamide
Material
Brass
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
300 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210869766
Color
Red
Finish
Electro-Tin Plated
Product UPC
78621086976
Used With
Round Conductors
Weight
0.2000 lb
Certifications
  • UL
  • CSA
