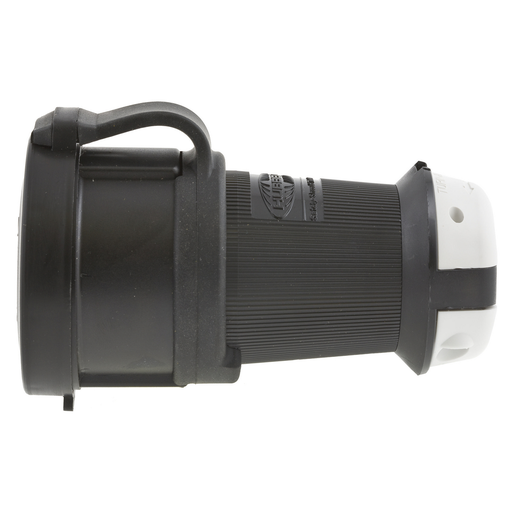

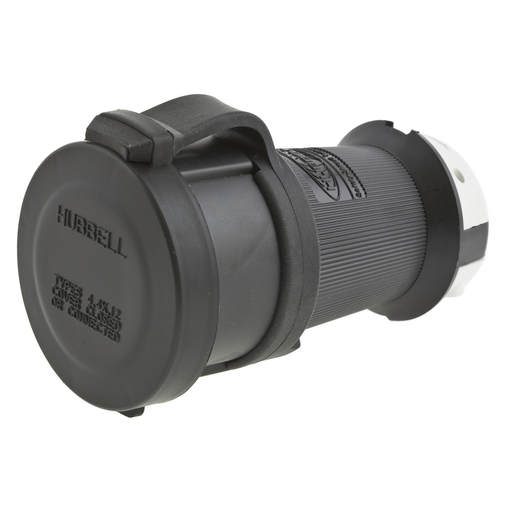

Hubbell HBL2433-SW 20A 3Ph 480V AC Twist-Lock Watertight SAFETY-SHROUD Black VALOX Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2433SW | Codale Part # 99390
$395.46/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal, Black PBT housing, White PBT clamps.

Technical Information

Amperage
20 Amp
Applications
For Heavy Duty Industrial
Conductor Size
12-10 AWG
Connection Type
Pressure Screw Terminal
Current
20 Amp
Horsepower
5 hp
Material
Composite
NEMA
L16-20R
Number of Conductors
4
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
4X,CSA,Type 12,Type 4,UL
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Watertight, Insulated, Standard
Voltage
480 Volt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585231464
Color
Black and White
Environmental Conditions
Watertight
Product UPC
78358523146
Weight
0.65 lb

Dimensions

Height
4.4 Inch
Length
2-3/4 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL Type 4X Environmental seal protects connection while in use.
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Closure cap is included for environmental seal when device is not in use
  • Superior cord grip design protects terminations from excess strain.
  • Standard Product
