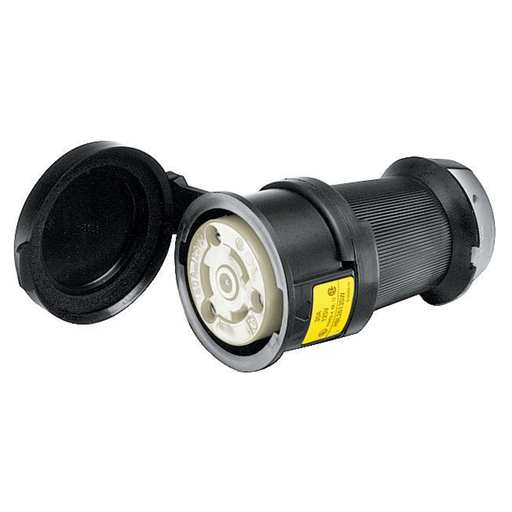

Hubbell HBL2613-SW 30A 125V Twist-Lock Watertight SAFETY-SHROUD Black VALOX Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2613SW | Codale Part # 99394
$455.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, Black PBT housing, White PBT clamps.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Pressure Screw Terminal
Current
30 Amp
Material
Composite
NEMA
L5-30R
Number of Conductors
3-Wire Grounding
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Tc Connection
Pressure Screw Terminal
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without impact, -25 degrees C with Impact
Type
Insulated, Standard, 2-Pole
Voltage
125 Volt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Watertight Safety-Shroud®

General Product Info

12-Digit UPC
783585231624
Color
Black and White
Environmental Conditions
Watertight
Product UPC
78358523162
Weight
0.55 lb

Dimensions

Height
4.4 Inch
Length
2.57 Inch
Width
2.57 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL Type 4X Environmental seal protects connection while in use.
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Closure cap is included for environmental seal when device is not in use
  • Superior cord grip design protects terminations from excess strain.
  • Shrouded Watertight Construction
