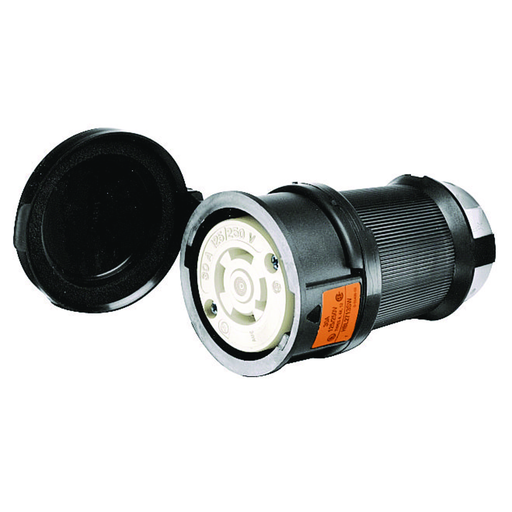

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Email

Hubbell HBL2713-SW 30A 125/250V AC Twist-Lock Watertight SAFETY-SHROUD Black VALOX Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2713SW | Codale Part # 99397
$518.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 30A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-30R, Screw Terminal, Black PBT housing, White PBT clamps.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Pressure Screw
Current
30 Amp
Material
Composite
NEMA
L14-30R
Number of Conductors
4
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Female, Standard
Voltage
125/250 Volt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Watertight Safety-Shroud®

General Product Info

12-Digit UPC
783585231785
Color
Black and White
Environmental Conditions
Watertight
Product UPC
78358523178
Weight
0.65 lb

Dimensions

Height
4.4 Inch
Length
2-3/4 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL Type 4X Environmental seal protects connection while in use.
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Closure cap is included for environmental seal when device is not in use
  • Superior cord grip design protects terminations from excess strain.
  • Shrouded Watertight Construction
